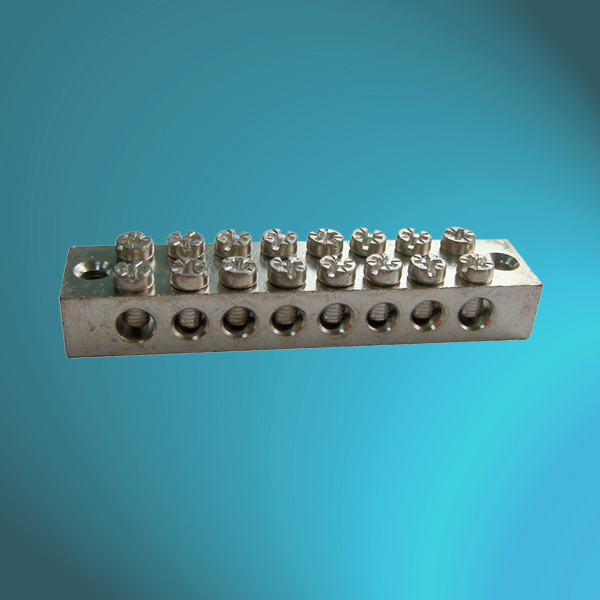

Brass Terminal Blocks
黄铜接地端子-尺寸规格可定制
SPECIFICATIONS | ||||||
HOUSING: | BRASS | |||||
SCREWS: | GALVANISED | |||||
STANDARD: | CE (BS EN 60998) | |||||
FEATURE: | EARTHING CONNECTION | |||||
EASE CODE | WAYS | DIMENSIONS (MM) | ||||
L | M | Φ | d | H | ||
CBE-BL-3 | 3 | 42.3 | 19.1 | Φ5.5 | 10.8 | 12.7 |
CBE-BL-4 | 4 | 51.5 | 18.5 | Φ5.5 | 10.5 | 12.2 |
CBE-BL-5 | 5 | 59.7 | 19.1 | Φ5.5 | 10.8 | 12.7 |
CBE-BL-6 | 6 | 68.4 | 19.1 | Φ5.5 | 10.8 | 12.7 |
CBE-BL-7 | 7 | 77.1 | 19.1 | Φ5.5 | 10.8 | 12.7 |
CBE-BL-8 | 8 | 86.0 | 18.5 | Φ5.5 | 10.5 | 12.2 |
TOLERANCE: ± 0.1 | ||||||
