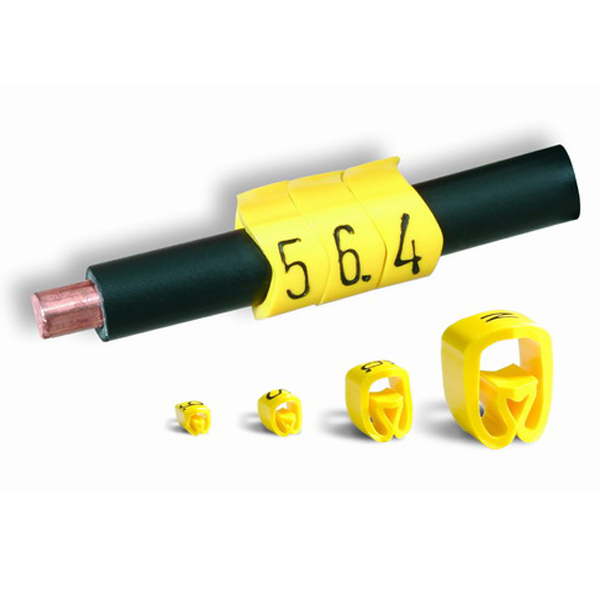

PARTEX无卤阻燃标识PAZ型号
产品描述 | ||||
1. 封闭式线标，适用于开路导线、电缆。 | ||||
2. 适用于电力、风力、水力系统。 | ||||
3. 高质量热箔印刻技术。 | ||||
4. 具有弹性的内折式设计，线标内径可以随着线径的增大而扩展，从而增加了线径适用范围，减低了对同一字符的库存量。 | ||||
5. 线标与线标之间的内嵌式设计使安装后字符自动对齐。 | ||||
6. 极强的环境适应能力和优良的字符分辨率。 | ||||
PRODUCT OVERVIEW | ||||
1. CLOSED, SECURE MAKERS SLEEVE FOR UNCONNECTED WIRES AND CABLES. | ||||
2. DESIGNED FOR ELECTRICAL, PNEUMATIC, HYDRAULIC APPLICATIONS ETC. | ||||
3. HIGH QUALITY HOT-FOIL MARKING. | ||||
4. UNIQUE PROFILE WITH SPRING-ACTION BELLOWS COVERS A WIDE VARIETY OF DIAMETERS WITH A SINGLE MARK SIZE THEREFORE REDUCING MARKER STOCK REQUIREMENTS. | ||||
5. DESIGNED TO INTERLOCK WHEN FITTED, ENABLING EASY ALIGNMENT OF MULTIPLE CHARACTER MARKINGS. | ||||
6. HIGH ENVIRONMENTAL TOLERANCE AND EXCELLENT LEGIBILITY. | ||||
数据参数 | ||||
材质：PARTEX特殊配方的无镉无硅柔软PVC。 | ||||
颜色：根据国际色标有11种颜色以及接地标识可供订购；其他颜色如果有需要的话，也可以定制。 | ||||
印刷：热箔刻印。 | ||||
工作温度：-30℃ ～ +60℃ | ||||
防火等级：UL94-V0 | ||||
其他性能：阻燃、抗化学腐蚀、抗伽玛射线、抗紫外线。 | ||||
标准字符：0-9， A-Z，以及其他各种标准或者特定字符或者标志可供选择。 | ||||
SPECIFICATION | ||||
MATERIAL: CADMIUM AND SILICON FREE, SOFT PVC ACCORDING TO SPECIAL PARTEX FORMULA. | ||||
COLOUR: 11 COLOURS ACCORDING TO THE INTERNATIONAL COLOR CODE AS WELL AS EARTH SYMBOL. | ||||
PRINT: HOT-FOIL STAMPED. | ||||
TEMPERATURE: -30℃ ～ +60℃ | ||||
FLAMMABILITY RESISTANCE: UL94-V0 | ||||
PROPERTIES: SELF-EXTINGUISHING, GOOD RESISTANCE TO CHEMICALS, GAMMA AND UV RADIATION. | ||||
STANDARD LEGENDS: 0-9, A-Z, AND OTHER SPECIAL SYMBOLS AVAILABLE TO ORDER. | ||||
PART NUMBER | DIAMETER / AREA | SLEEVES LENGTH | SEMI CUT MARKER | LOOSE, CUT MARKER |
PA02/3 | 1.3-3.0 MM / 0.2-1.5 MM2 | 3 MM | REEL OF 1000 | SINGLE BAG OF 250 PCS 10 STRIPS OF 25 MARKERS STRIP PACK OF 1000 (5X200) |
COMPACTADISCS OF 500 | ||||
PA1/3 | 2.5-5.0 MM / 1.5-4.0 MM2 | 3 MM | REEL OF 1000 | SINGLE BAG OF 250 PCS 10 STRIPS OF 25 MARKERS STRIP PACK OF 1000 (5X200) |
COMPACTADISCS OF 500 | ||||
PA2/4 | 4.0-10.0 MM / 2.5-16.0 MM2 | 4 MM | COMPACTADISCS OF 250ST | STRIP PACK OF 500 (5X100) |
PA3/6 | 8.0-16.0 MM / 16.0-70.0 MM2 | 6 MM | STRIP PACK OF 100 (5X20) | |
