可印字标识

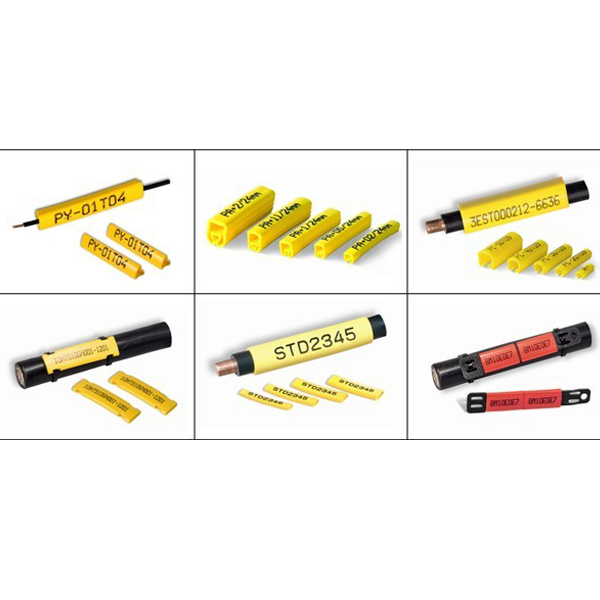

PY/PA+/PC/PK/PO MULTI-CHARACTER WIRE AND CABLE MARKING | |||||||
产品描述 | |||||||
1. 在单个套管上根据客户要求定制多字符数码。 | |||||||
2. 灵活的设计与应用,大大降低了库存和成本。 | |||||||
3. 可以根据客户现场使用的要求来进行包装。 | |||||||
4. 其中PA+系列拥有平直的顶面加强了字符分辨率,另外侧面的凹槽可降低安装时的摩擦系数30%-50%。 | |||||||
PRODUCT OVERVIEW | |||||||
1. CUSTOMIZED MULTI-CHARACTER MARKING ON ONE SINGLE SLEEVE. | |||||||
2. FLEXIBLE DESIGN, NO WASTAGE, REDUCED STOCK-KEEPING. | |||||||
3. PACKING FOR DIFFERENT NEEDS ON INSTALLATION SITE. | |||||||
4. PA+ WITH FLAT TOP FOR EXCELLENT READABILITY, THE UNIQUE PATENTED GROOVES ALONG THE OUT-SIDE PROFILE WALL, REDUCING REQUIRED MOUNTING FORCE BY 30%-50%. | |||||||
数据参数 | |||||||
材质:PARTEX特殊配方的无镉无硅柔软PVC。 | |||||||
颜色:根据国际色标有11种颜色以及接地标识可供订购;其他颜色如果有需要的话,也可以定制。 | |||||||
印刷:黑色喷墨打印,PO则是采用的热转印技术。 | |||||||
工作温度:-30℃ ~ +60℃ | |||||||
防火等级:UL94-V0 | |||||||
其他性能:阻燃、抗化学腐蚀、抗伽玛射线、抗紫外线。 | |||||||
标准字符:0-9, A-Z,以及其他各种标准或者特定字符或者标志可供选择。 | |||||||
SPECIFICATION | |||||||
MATERIAL: CADMIUM AND SILICON FREE, SOFT PVC ACCORDING TO SPECIAL PARTEX FORMULA. | |||||||
COLOUR: 11 COLOURS ACCORDING TO THE INTERNATIONAL COLOR CODE AS WELL AS EARTH SYMBOL. | |||||||
PRINT: BLACK ETCHING INK JET PRINTING. THERMAL TRANSFER PRINT ON PO PROFILE. | |||||||
TEMPERATURE: -30℃ ~ +60℃ | |||||||
FLAMMABILITY RESISTANCE: UL94-V0 | |||||||
PROPERTIES: SELF-EXTINGUISHING, GOOD RESISTANCE TO CHEMICALS, GAMMA AND UV RADIATION. | |||||||
STANDARD LEGENDS: 0-9, A-Z, AND OTHER SPECIAL SYMBOLS AVAILABLE TO ORDER. |
PAZ+/PKZ/POZ MULTI-CHARACTER WIRE AND CABLE MARKING | |||||||
产品描述 | |||||||
1. 无卤ZEREX材质,在单个套管上根据客户要求定制多字符数码。 | |||||||
2. 防火等级达到UL-94V0。 | |||||||
3. 工作温度 -30℃ ~ +90℃ | |||||||
4. 柔韧的ZEREX材料便于使用安装。 | |||||||
5. 高标准的喷墨印刷使字体清晰易读。 | |||||||
6. 持久和易更换的特性能减少将近50%的成本。 | |||||||
7. 其中PAZ+和PKZ采用的是高清晰度的喷墨印刷;POZ采用的是热转印,不耐磨损。 | |||||||
PRODUCT OVERVIEW | |||||||
1. HALOGEN-FREE ZEREX MATERIAL, CUSTOMIZED MULTI-CHARACTER MARKING ON ONE SINGLE SLEEVE. | |||||||
2. SELF EXTINGUISHING ACCORDING TO UL94-V0. | |||||||
3. TEMPERATURE RANGE FROM -30℃ TO +90℃. | |||||||
4. THE FLEXIBLE ZEREX MATERIAL ENABLES FAST AND EASY MOUNTING. | |||||||
5. ETCHING INK JET WITH HIGH RESOLUTION GIVES EXCELLENT LEGIBILITY. | |||||||
6. PERMANENT AND ADJUSTABLE MARKING IN ONE STEP REDUCES MARKING COST UP TO 50%. | |||||||
7. PAZ+ AND PKZ: ETCHING INK JET PRINT WITH HIGH RESOLUTION. POZ: THERMAL TRANSFER PRINT, WHICH IS NOT ABRASION RESISTANCE. |
可印字标识
PY/PA+/PC/PK/PO MULTI-CHARACTER WIRE AND CABLE MARKING | |||||||
产品描述 | |||||||
1. 在单个套管上根据客户要求定制多字符数码。 | |||||||
2. 灵活的设计与应用,大大降低了库存和成本。 | |||||||
3. 可以根据客户现场使用的要求来进行包装。 | |||||||
4. 其中PA+系列拥有平直的顶面加强了字符分辨率,另外侧面的凹槽可降低安装时的摩擦系数30%-50%。 | |||||||
PRODUCT OVERVIEW | |||||||
1. CUSTOMIZED MULTI-CHARACTER MARKING ON ONE SINGLE SLEEVE. | |||||||
2. FLEXIBLE DESIGN, NO WASTAGE, REDUCED STOCK-KEEPING. | |||||||
3. PACKING FOR DIFFERENT NEEDS ON INSTALLATION SITE. | |||||||
4. PA+ WITH FLAT TOP FOR EXCELLENT READABILITY, THE UNIQUE PATENTED GROOVES ALONG THE OUT-SIDE PROFILE WALL, REDUCING REQUIRED MOUNTING FORCE BY 30%-50%. | |||||||
数据参数 | |||||||
材质:PARTEX特殊配方的无镉无硅柔软PVC。 | |||||||
颜色:根据国际色标有11种颜色以及接地标识可供订购;其他颜色如果有需要的话,也可以定制。 | |||||||
印刷:黑色喷墨打印,PO则是采用的热转印技术。 | |||||||
工作温度:-30℃ ~ +60℃ | |||||||
防火等级:UL94-V0 | |||||||
其他性能:阻燃、抗化学腐蚀、抗伽玛射线、抗紫外线。 | |||||||
标准字符:0-9, A-Z,以及其他各种标准或者特定字符或者标志可供选择。 | |||||||
SPECIFICATION | |||||||
MATERIAL: CADMIUM AND SILICON FREE, SOFT PVC ACCORDING TO SPECIAL PARTEX FORMULA. | |||||||
COLOUR: 11 COLOURS ACCORDING TO THE INTERNATIONAL COLOR CODE AS WELL AS EARTH SYMBOL. | |||||||
PRINT: BLACK ETCHING INK JET PRINTING. THERMAL TRANSFER PRINT ON PO PROFILE. | |||||||
TEMPERATURE: -30℃ ~ +60℃ | |||||||
FLAMMABILITY RESISTANCE: UL94-V0 | |||||||
PROPERTIES: SELF-EXTINGUISHING, GOOD RESISTANCE TO CHEMICALS, GAMMA AND UV RADIATION. | |||||||
STANDARD LEGENDS: 0-9, A-Z, AND OTHER SPECIAL SYMBOLS AVAILABLE TO ORDER. |
PAZ+/PKZ/POZ MULTI-CHARACTER WIRE AND CABLE MARKING | |||||||
产品描述 | |||||||
1. 无卤ZEREX材质,在单个套管上根据客户要求定制多字符数码。 | |||||||
2. 防火等级达到UL-94V0。 | |||||||
3. 工作温度 -30℃ ~ +90℃ | |||||||
4. 柔韧的ZEREX材料便于使用安装。 | |||||||
5. 高标准的喷墨印刷使字体清晰易读。 | |||||||
6. 持久和易更换的特性能减少将近50%的成本。 | |||||||
7. 其中PAZ+和PKZ采用的是高清晰度的喷墨印刷;POZ采用的是热转印,不耐磨损。 | |||||||
PRODUCT OVERVIEW | |||||||
1. HALOGEN-FREE ZEREX MATERIAL, CUSTOMIZED MULTI-CHARACTER MARKING ON ONE SINGLE SLEEVE. | |||||||
2. SELF EXTINGUISHING ACCORDING TO UL94-V0. | |||||||
3. TEMPERATURE RANGE FROM -30℃ TO +90℃. | |||||||
4. THE FLEXIBLE ZEREX MATERIAL ENABLES FAST AND EASY MOUNTING. | |||||||
5. ETCHING INK JET WITH HIGH RESOLUTION GIVES EXCELLENT LEGIBILITY. | |||||||
6. PERMANENT AND ADJUSTABLE MARKING IN ONE STEP REDUCES MARKING COST UP TO 50%. | |||||||
7. PAZ+ AND PKZ: ETCHING INK JET PRINT WITH HIGH RESOLUTION. POZ: THERMAL TRANSFER PRINT, WHICH IS NOT ABRASION RESISTANCE. |
