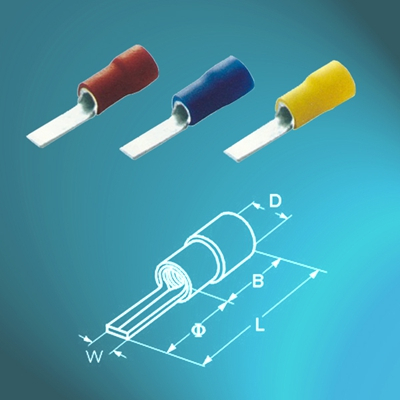

板形绝缘端子
红色绝缘材料： 导体范围0.5-1.5mm⊃2; /22-16AWG。
BULE绝缘材料： 导体范围1.5-2.5mm⊃2; /16-14AWG。
黄色绝缘材料： 导体范围4.0-6.0mm⊃2; /12-10AWG。
说明 | ||||||
材料 | PVC/PA 绝缘材料; 高传导性紫铜 | |||||
镀层 | 环保电镀锡 | |||||
标准 | UL认证 | |||||
工作温度 | 75°C/105°C | |||||
工作电压 | 600V | |||||
EASE CODE | DIMENSIONS(mm) | WIRE RANGE | ||||
W | D | Φ | B | L | mm⊃2; | |
TM-BD-IN-10.0R | 3.0 | 4.0 | 10.0 | 10.5 | 20.5 | 0.5-1.5 (22-16) |
TM-BD-IN-13.0R | 3.0 | 4.0 | 13.0 | 10.5 | 23.5 | |
TM-BD-IN-14.5R | 3.0 | 4.0 | 14.5 | 10.5 | 25.0 | |
TM-BD-IN-18.0/2.3R | 2.3 | 4.0 | 15.3 | 10.5 | 25.8 | |
TM-BD-IN-18.0/3.0R | 3.0 | 4.0 | 18.0 | 10.5 | 28.5 | |
TM-BD-IN-8.0B | 3.0 | 4.6 | 8.0 | 10.5 | 18.5 | 1.5-2.5 (16-14) |
TM-BD-IN-13.0B | 3.0 | 4.6 | 13.0 | 10.5 | 23.5 | |
TM-BD-IN-14..0B | 3.0 | 4.6 | 14.0 | 10.5 | 24.5 | |
TM-BD-IN-18.0/2.3B | 2.3 | 4.6 | 18.0 | 10.5 | 28.5 | |
TM-BD-IN-18.0/3.0B | 3.0 | 4.6 | 18.0 | 10.5 | 28.5 | |
TM-BD-IN-14.0Y | 3.0 | 6.9 | 14.0 | 13.5 | 27.5 | 4.0-6.0 (12-10) |
TM-BD-IN-18.0/2.3Y | 2.3 | 6.9 | 18.0 | 13.5 | 31.5 | |
TM-BD-IN-18.0/3.0Y | 3.0 | 6.9 | 18.0 | 13.5 | 31.5 | |
