PLT
PARTEX
39269090
| 数量： | |
|---|---|

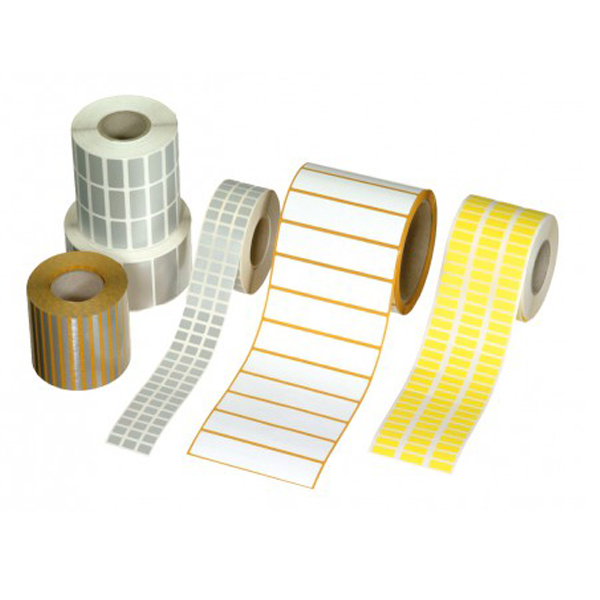

PARTEX自粘式标签,PLT型号
MATERIAL: UL APPROVED POLYESTER WITH ACRYLIC BASED PERMANENT ADHESIVE. UL APPROVED MT310 TRANSPARENT POLYESTER | ||||
COLORS: YELLOW, SILVER, WHITE | ||||
PRINT: PRINTABLE IN RECOMMENDED STANDARD THERMAL TRANSFER PRINTERS WITH STANDARD LABEL DESIGN SOFTWARE. | ||||
TEMPERATURE RANGE: SERVICE TEMPERATURE RANGE: –40°C TO +150°C (–40°F TO +302°F). | ||||
MINIMUM APPLICATION RANGE: +10°C (+50°F). | ||||
STORAGE STABILITY: TWO YEARS STORED AT +21°C (+70°F) AND 50% RELATIVE HUMIDITY (RH). | ||||
RESISTANCE: UL CODE PGGU2. EXCELLENT RESISTANCE TO ISOPROPYL ALCOHOL, OIL AND WATER. | ||||
ARTICLE NUBMER | SIZE | |||
YELLOW | SILVER | WHITE | MM | QTY / ROLL |
PLT018006RN4 | PLT018006RN8 | PLT018006RN9 | 18,0 X 6,5 | 10000 |
PLT018009RN4 | PLT018009RN8 | PLT018009RN9 | 18,0 X 9,0 | 10000 |
PLT020008RN4 | PLT020008RN8 | PLT020008RN9 | 20,0 X 8,0 | 10000 |
PLT025012RN4 | PLT025012RN8 | PLT025012RN9 | 25,4 X 12,7 | 10000 |
PLT026010RN4 | PLT026010RN8 | PLT026010RN9 | 26,0 X 10,0 | 10000 |
PLT026017RN4 | PLT026017RN8 | PLT026017RN9 | 26,5 X 17,5 | 5000 |
PLT030020RN4 | PLT030020RN8 | PLT030020RN9 | 30,0 X 20,0 | 6000 |
PLT032009RN4 | PLT032009RN8 | PLT032009RN9 | 32,0 X 9,5 | 10000 |
PLT034015RN4 | PLT034015RN8 | PLT034015RN9 | 34,0 X 15,0 | 2500 |
PLT038019RN4 | PLT038019RN8 | PLT038019RN9 | 38,0 X 19,0 | 2000 |
PLT038012RN4 | PLT038012RN8 | PLT038012RN9 | 38,1 X 12,7 | 2000 |
PLT040020RN4 | PLT040020RN8 | PLT040020RN9 | 40,0 X 20,0 | 2000 |
PLT045023RN4 | PLT045023RN8 | PLT045023RN9 | 45,0 X 23,0 | 2000 |
PLT047028RN4 | PLT047028RN8 | PLT047028RN9 | 47,0 X 28,0 | 1500 |
PLT050023RN4 | PLT050023RN8 | PLT050023RN9 | 50,0 X 23,0 | 2000 |
PLT050030RN4 | PLT050030RN8 | PLT050030RN9 | 50,0 X 30,0 | 1000 |
PRODUCT AND ORDER INFORMATION, CABLE MARKERS | ||||
ARTICLE NUMBER | LABEL SIZE | PRINTABLE SURFACE | LABELS | |
YELLOW | WHITE | MM | MM | QUANTITY |
PLT023055RN4 | PLT023055RN9 | 23 X 55 | 21 X 16 | 2400 |
PLT025035RN4 | PLT025035RN9 | 25 X 35 | 24 X 14 | 4500 |
PLT025035RN4 | PLT025076RN9 | 25 X 76 | 23 X 19 | 1800 |
PLT025140RN4 | PLT025140RN9 | 25 X 140 | 24 X 25 | 1050 |
PLT032093RN4 | PLT032093RN9 | 32 X 93 | 30 X 25 | 1500 |
PARTEX自粘式标签,PLT型号
MATERIAL: UL APPROVED POLYESTER WITH ACRYLIC BASED PERMANENT ADHESIVE. UL APPROVED MT310 TRANSPARENT POLYESTER | ||||
COLORS: YELLOW, SILVER, WHITE | ||||
PRINT: PRINTABLE IN RECOMMENDED STANDARD THERMAL TRANSFER PRINTERS WITH STANDARD LABEL DESIGN SOFTWARE. | ||||
TEMPERATURE RANGE: SERVICE TEMPERATURE RANGE: –40°C TO +150°C (–40°F TO +302°F). | ||||
MINIMUM APPLICATION RANGE: +10°C (+50°F). | ||||
STORAGE STABILITY: TWO YEARS STORED AT +21°C (+70°F) AND 50% RELATIVE HUMIDITY (RH). | ||||
RESISTANCE: UL CODE PGGU2. EXCELLENT RESISTANCE TO ISOPROPYL ALCOHOL, OIL AND WATER. | ||||
ARTICLE NUBMER | SIZE | |||
YELLOW | SILVER | WHITE | MM | QTY / ROLL |
PLT018006RN4 | PLT018006RN8 | PLT018006RN9 | 18,0 X 6,5 | 10000 |
PLT018009RN4 | PLT018009RN8 | PLT018009RN9 | 18,0 X 9,0 | 10000 |
PLT020008RN4 | PLT020008RN8 | PLT020008RN9 | 20,0 X 8,0 | 10000 |
PLT025012RN4 | PLT025012RN8 | PLT025012RN9 | 25,4 X 12,7 | 10000 |
PLT026010RN4 | PLT026010RN8 | PLT026010RN9 | 26,0 X 10,0 | 10000 |
PLT026017RN4 | PLT026017RN8 | PLT026017RN9 | 26,5 X 17,5 | 5000 |
PLT030020RN4 | PLT030020RN8 | PLT030020RN9 | 30,0 X 20,0 | 6000 |
PLT032009RN4 | PLT032009RN8 | PLT032009RN9 | 32,0 X 9,5 | 10000 |
PLT034015RN4 | PLT034015RN8 | PLT034015RN9 | 34,0 X 15,0 | 2500 |
PLT038019RN4 | PLT038019RN8 | PLT038019RN9 | 38,0 X 19,0 | 2000 |
PLT038012RN4 | PLT038012RN8 | PLT038012RN9 | 38,1 X 12,7 | 2000 |
PLT040020RN4 | PLT040020RN8 | PLT040020RN9 | 40,0 X 20,0 | 2000 |
PLT045023RN4 | PLT045023RN8 | PLT045023RN9 | 45,0 X 23,0 | 2000 |
PLT047028RN4 | PLT047028RN8 | PLT047028RN9 | 47,0 X 28,0 | 1500 |
PLT050023RN4 | PLT050023RN8 | PLT050023RN9 | 50,0 X 23,0 | 2000 |
PLT050030RN4 | PLT050030RN8 | PLT050030RN9 | 50,0 X 30,0 | 1000 |
PRODUCT AND ORDER INFORMATION, CABLE MARKERS | ||||
ARTICLE NUMBER | LABEL SIZE | PRINTABLE SURFACE | LABELS | |
YELLOW | WHITE | MM | MM | QUANTITY |
PLT023055RN4 | PLT023055RN9 | 23 X 55 | 21 X 16 | 2400 |
PLT025035RN4 | PLT025035RN9 | 25 X 35 | 24 X 14 | 4500 |
PLT025035RN4 | PLT025076RN9 | 25 X 76 | 23 X 19 | 1800 |
PLT025140RN4 | PLT025140RN9 | 25 X 140 | 24 X 25 | 1050 |
PLT032093RN4 | PLT032093RN9 | 32 X 93 | 30 X 25 | 1500 |
