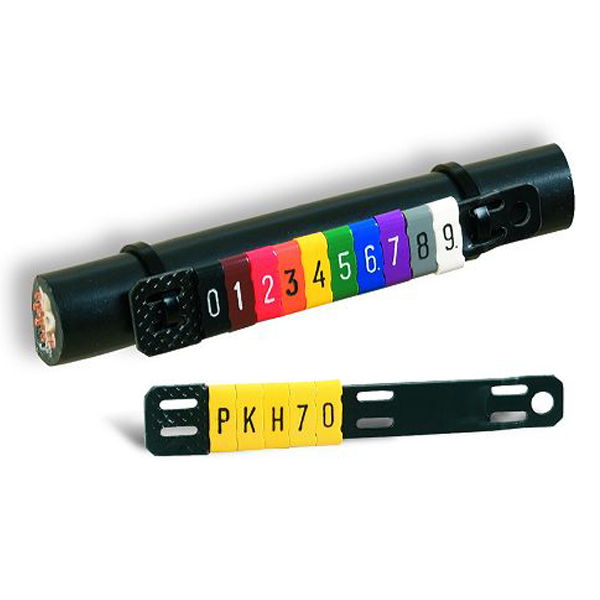

PARTEX彩色线号管,PK型号
产品描述 | ||
1. 完整的组合式线标。 | ||
2. 安装在PKH和POH线标条卡上配合扎带使用非常方便，一种尺寸适用于几乎所有线径。 | ||
3. 封闭式设计并具有内应夹力，使线标一经安装不会发生位移。 | ||
4. 线标与线标之间的内嵌式设计使安装后字符自动对齐。 | ||
5. 极强的户外环境适应能力和优良的字符分辨率。 | ||
PRODUCT OVERVIEW | ||
1. COMPLETE MAKER FOR CABLE AND WIRE MARKING. | ||
2. INSTALLED QUICKLY ONTO PARTEX PKH OR POH HOLDER WHICH IS FASTENED WITH CABLE TIES AROUNG THE CABLE, WHICH IT MEANS ONE SIZE OF PK FOR ALL DIAMETERS. | ||
3. ENTIRELY CLOSED AND TWIST-PROTECTED. | ||
4. DESIGNED TO INTERLOCK WHEN FITTED, ENABLING EASY ALIGNMENT OF MULTIPLE CHARACTER MARKINGS. | ||
5. HIGHLY DURABLE IN EXPOSED ENVIRONMENTS AND WITH EXCELLENT LEGIBILITY. | ||
数据参数 | ||
材质：PARTEX特殊配方的无镉柔软PVC。 | ||
颜色：根据国际色标有11种颜色以及接地标识可供订购；其他颜色如果有需要的话，也可以定制。 | ||
印刷：热箔刻印。 | ||
工作温度：-30℃ ～ +60℃ | ||
防火等级：UL94-V0 | ||
其他性能：阻燃、抗化学腐蚀、抗伽玛射线、抗紫外线。 | ||
标准字符：0-9， A-Z，以及其他各种标准或者特定字符或者标志可供选择。 | ||
SPECIFICATION | ||
MATERIAL: CADMIUM AND SILICON FREE, SOFT PVC ACCORDING TO SPECIAL PARTEX FORMULA. | ||
COLOUR: 11 COLOURS ACCORDING TO THE INTERNATIONAL COLOR CODE AS WELL AS EARTH SYMBOL. | ||
PRINT: HOT STAMPED. | ||
TEMPERATURE: -30℃ ～ +60℃ | ||
FLAMMABILITY RESISTANCE: UL94-V0 | ||
PROPERTIES: SELF-EXTINGUISHING, GOOD RESISTANCE TO CHEMICALS, GAMMA AND UV RADIATION. | ||
STANDARD LEGENDS: 0-9, A-Z, AND OTHER SPECIAL SYMBOLS AVAILABLE TO ORDER. | ||
PART NUMBER | SLEEVES LENGTH | SEMI CUT MARKER |
PK2/4 | 4 MM | COMPACTADISCS OF 500 |
*AWG SIZE FOR GUIDANCE ONLY | ||
