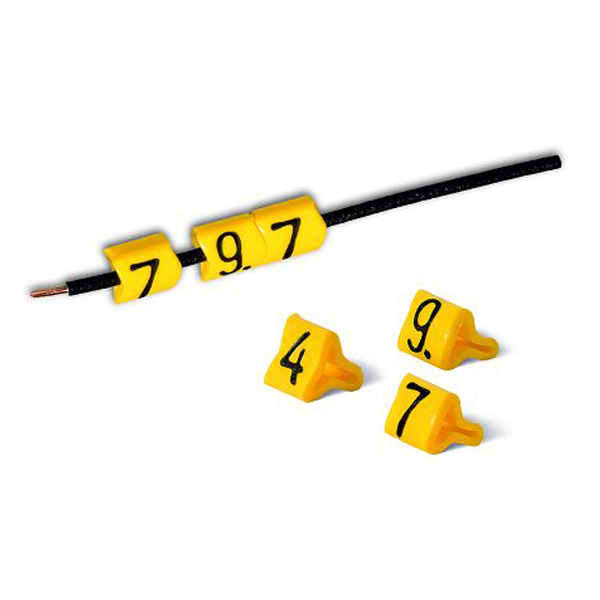

PY光纤号码管，可定制
产品描述 | ||||
PY型线缆标识是为了不断增长的细线径布线要求而设计制造的，主要用于光纤以及通讯类布线。这种创新型的Y型截面使得细线径导线也可以标有较大的字符。 | ||||
1. 封闭式线标，适用于开路导线、电缆。 | ||||
2. 主要适用于1.0-2.0 MM直径的导线, 即线规 0.2-7.0 MM2 | ||||
3. 采用V型臂章式切割，使线标和线标之间互相嵌合，整齐易读取。 | ||||
PRODUCT OVERVIEW | ||||
IN RESPONSE TO CUSTOMERS' REQUESTS FOR A MARKER TO IDENTIFY THE INCREASING NUMBER OF SMALLER DIAMETER DATA, FIBRE-OPTIC AND TELECOMMUNICATION WIRES, WE INTRODUCED THE PY MARKERS. ITS REVOLUTIONARY Y-PROFILE MAKES IT EXTREMELY EASY TO APPLY AND ALSO ALLOWS | ||||
1. CLOSED, SECURE MAKERS SLEEVE FOR UNCONNECTED WIRES AND CABLES. | ||||
2. FITS CABLE DIAMETER 1.0-2.0 MM, 0.2-0.7 MM2 | ||||
3. CHEVRON CUT MEANS MARKERS INTERLOCK AND TEXT IS ALWAYS EASILY READABLE. | ||||
4. GRIPS GENTLY AND SO IS IDEAL FOR DELICATE WIRES. | ||||
数据参数 | ||||
材质：PARTEX特殊配方的无镉柔软PVC。 | ||||
颜色：根据国际色标有11种颜色以及接地标识可供订购；其他颜色如果有需要的话，也可以定制。 | ||||
印刷：热箔刻印。 | ||||
工作温度：-30℃ ～ +60℃ | ||||
防火等级：UL94-V0 | ||||
其他性能：阻燃、抗化学腐蚀、抗伽玛射线、抗紫外线。 | ||||
标准字符：0-9， A-Z，以及其他各种标准或者特定字符或者标志可供选择。 | ||||
SPECIFICATION | ||||
MATERIAL: CADMIUM AND SILICON FREE, SOFT PVC ACCORDING TO SPECIAL PARTEX FORMULA. | ||||
COLOUR: 11 COLOURS ACCORDING TO THE INTERNATIONAL COLOR CODE AS WELL AS EARTH SYMBOL. | ||||
PRINT: HOT-FOIL STAMPED. | ||||
TEMPERATURE: -30℃ ～ +60℃ | ||||
FLAMMABILITY RESISTANCE: UL94-V0 | ||||
PROPERTIES: SELF-EXTINGUISHING, GOOD RESISTANCE TO CHEMICALS, GAMMA AND UV RADIATION. | ||||
STANDARD LEGENDS: 0-9, A-Z, AND OTHER SPECIAL SYMBOLS AVAILABLE TO ORDER. | ||||
PART NUMBER | DIAMETER / AREA | SLEEVES LENGTH | SEMI CUT MARKER | LOOSE, CUT MARKER |
PY01/3 | 1.0-2.0 MM / 0.2-0.7 MM2 | 3 MM | REEL OF 1000 | SINGLE BAG OF 250 PCS 10 STRIPS OF 25 MARKERS STRIP PACK OF 1000 (5X200) |
