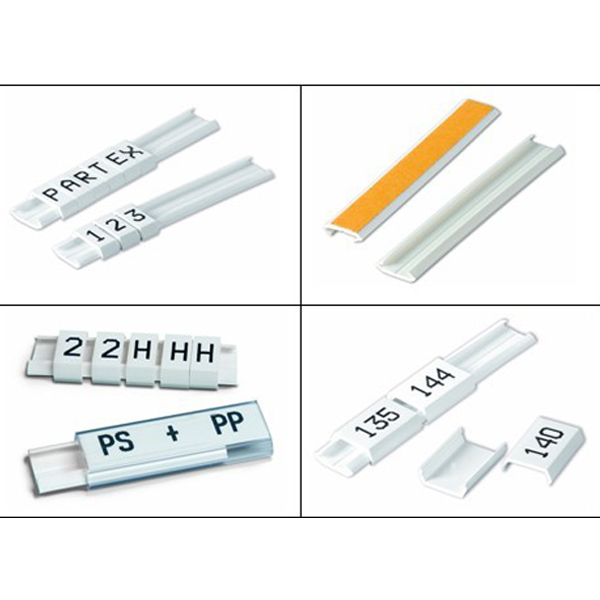

PARTEX轨道式标识，PS型号

1. PS型是专门用于保险丝盒，控制柜以及元器件的标准型通用标识系统。

2. PS系统包括预印标识和导轨，独特的导轨背面带有不干胶，使用非常方便。

3. 同时供应透明的多字符标识模块，可以与PARTEX PF标签纸配合使用。

PRODUCT OVERVIEW

1. UNIVERSAL MARKING SYSTEM FOR FUSE AND METER CABINETS, CONTROL ENCLOSURES AND COMPONENTS, AMONG OTHERS.

2. RAPID INSTALLATION USING PRE-MARKED OR WIRE-ON TILES FIXED TO UNIQUE RAIL SYSTEMS WHICH HAS SELF-ADHESIVE TAPE ON THE BACK.

3. MULTI-CHARACTER MODULES ARE ALSO AVAILABLE IN TRANSPARENT LABEL HOLDERS FOR PARTEX PF MARKING LABELS.

SPECIFICATION PS MODULES

DESIGN: MARKING PROFILE IN DIFFERENT MODULE WIDTHS WHICH SNAPS ONTO THE BASE PROFILE RAIL. ONE MODULE IS 17.5 MM.

MATERIAL: CADMIUM AND SILICON FREE, RIGID PVC ACCORDING TO SPECIAL PARTEX FORMULA.

COLOUR: WHITE OR TRANSPARENT.

TEMPERATURE: -20℃ ～ +60℃

PRINT: ETCHING INK-JET PRINTING.

TEMPERATURE: -20℃ ～ +60℃

FLAMMABILITY RESISTANCE: UL94-V0

PROPERTIES: SELF-EXTINGUISHING, GOOD RESISTANCE TO CHEMICALS, UV RADIATION.

PART NUMBER

MODULE WIDTH

THICKNESS

HEIGHT

LENGTH

CHARACTER HEIGHT

MAX. NO. OF CHARACTER

PCS/ PACK

PS-2/6AB90.#

42738

4.2

12.9

5.5

5.5

1

20 PCS

PS-2/6AB90.GRD

42738

4.2

12.9

5.5

5.5

1

20/50 PCS

PS-2/6AB90.SINUS

0.5

4.2

12.9

8.75

5.5

1

20 PCS

PS-2/9AN9

0.5

4.2

12.9

8.75

5.5

2

20 PCS

PS-2/18AN9

1

4.2

12.9

17.5

5.5

3

20 PCS

PS-2/18PB90.1Z

1

4.2

12.9

17.5

5.5

3

6 X 6 PCS

PS-2/18PB90.##Z

1

4.2

12.9

17.5

5.5

3

6 X 6 PCS

PS-2/27AN9

1.5

4.2

12.9

26.25

5.5

5

20 PCS

PS-2/35AB90.HBR

2

4.2

12.9

35

5.5

6

20 PCS

PS-2/35AB90.JFB

2

4.2

12.9

35

5.5

6

20 PCS

PS-2/35AN9

2

4.2

12.9

35

5.5

6

20 PCS

PS-2/35PB90.1Z

2

4.2

12.9

35

5.5

6

6 X 6 PCS

PS-2/35PB90.###Z

2

4.2

12.9

35

5.5

6

6 X 6 PCS

PS-2/53AB90.HBR

2

4.2

12.9

35

5.5

9

20 PCS

PS-2/53AB90.JFB

2

4.2

12.9

35

5.5

9

20 PCS

PS-2/53AN9

3

4.2

12.9

52.5

5.5

9

20 PCS

PS-2/00KN9

3

4.2

12.9

1 M

——

——

METER

DESIGN: PLASTIC INSTALLATION RAIL WITH SELF-ADHESIVE REVERSE SIDE. HOLES CAN BE DRILLED.

MATERIAL: CADMIUM FREE, RIGID PVC ACCORDING TO SPECIAL PARTEX FORMULA.

COLOUR: WHITE OR BLACK.

TEMPERATURE: -20℃ ～ +60℃

PROPERTIES: SELF-EXTINGUISHING, GOOD RESISTANCE TO MOST CHEMICALS.

PART NUMBER

LENGTH

HEIGHT

COLOUR

THICKNESS

PCS/PACK

PS-20BPS

1000

11.6

BLACK

3

10 PCS

PS-20BPV

1000

11.6

WHITE

3

10 PCS

DESIGN: PLASTIC RIVET FOR FIXING BASE PROFILE RAIL.

MATERIAL: POLYAMIDE PA 6.6.

COLOUR: WHITE OR BLACK.

TEMPERATURE: -30℃ ～ +70℃

PROPERTIES: SELF-EXTINGUISHING, GOOD RESISTANCE TO OIL, MOST SOLVENTS, CHEMICALS AND UV RADIATION.

PART NUMBER

DIAMETER

MAX. THICKNESS INSTALLATION SURFACE

PCS/PACK

PS-R6

3

0.5-1.5

100 PCS

PS-R7

3

1.5-2.5

100 PCS

DESIGN: TRANSPARENT PROFILE FOR USE AS LABEL HOLDER FOR PARTEX PF MARKING LABEL. USE TOGETHER WITH WINSIGN PRINTING   SOFTWARE.

MATERIAL: CADMIUM AND SILICON FREE, RIGID PVC ACCORDING TO SPECIAL PARTEX FORMULA.

COLOUR: TRANSPARENT.

TEMPERATURE: -20℃ ～ +60℃

PROPERTIES: SELF-EXTINGUISHING, GOOD RESISTANCE TO CHEMICALS, MOST SOLVENTS, GAMMA AND UV RADIATION.

PART NUMBER

MODULE WIDTH

THICKNESS

HEIGHT

LENGTH

PCS/PACK

PS-2/9AT

42737

4.2

12.9

8.75

20 PCS

PS-2/18AT

1

4.2

12.9

17.5

20 PCS

PS-2/27AT

1.5

4.2

12.9

26.25

20 PCS

PS-2/35AT

2

4.2

12.9

35.5

20 PCS

PS-2/53AT

3

4.2

12.9

53.5

20 PCS

PS-2/00KT

——

4.2

12.9

1 M

20 PCS

LABEL FOR PS TRANSPARENT

PART NUMBER

SUITABLE LABEL

NO. OF 12" SHEETS/PACK

NO. OF 12" SHEETS/PACK

NO. OF LABELS/12" SHEETS (ROW X COLUMNS)

TOTAL NO. OF LABELS/PACK

PS-2/18AT

PF-2/18KT49

10 PCS

K=10 PCS

32 X 11 PCS

3520 PCS

PS-2/35AT

PF-2/18KT49

10 PCS

K=10 PCS

32 X 11 PCS

3520 PCS

PS-2/53AT

PF-2/18VT49

10 PCS

K=10 PCS

32 X 11 PCS

3520 PCS
