Fixtures

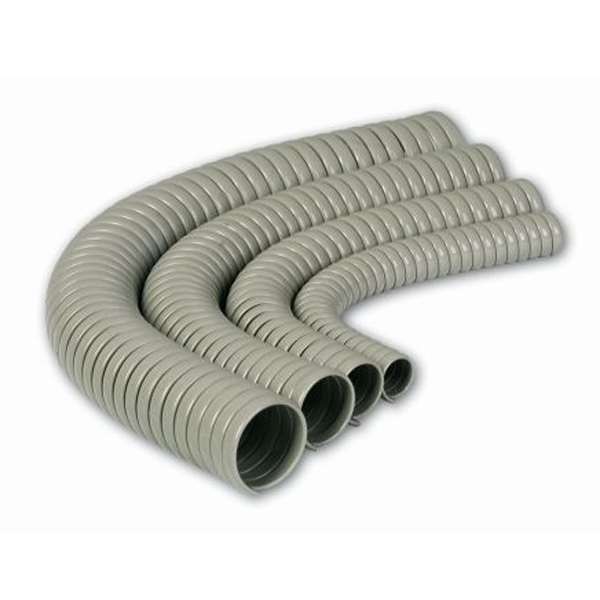

Tube-shaped flexible spiral tube (draw spring type).
Material: SP: PVC; SPZ: Halogen free
Colors: SP: Standard colours are grey or green.; SPZ: Standard colour is grey.
Temperature range: SP: From –20°C to +60°C (–4°F to +140°F); SPZ: From –30°C to +105°C (–22°F to +221°F).
Resistance: SP:Self-extinguishing. Good resistance to chemicals, gamma and UV radiation. Flame retardant according to UL94-V1.
SPZ: Resistant to oil and most waterbased solvents, other cleaning agents, acids and bases.
Flame retardant according to UL94-V0
| 数量： | |
|---|---|
PARTEX无卤线缆缠绕管，SP/SPZ型号
TYPE | INTERNAL DIAMETER | DIAMETER CHANGE |
MM / INCH | MM / INCH | |
SP-08 | 8 / .315 | ±1/ .039 |
SP-10 / SPZ10 | 10 / .394 | ±1/ .039 |
SP-15 / SPZ15 | 15 / .590 | ±1/ .039 |
SP-20 / SPZ20 | 20 / .788 | ±1/ .039 |
SP-25 / SPZ25 | 25 / .985 | ±1/ .039 |
SP-30 / SPZ30 | 30 / 1.182 | ±1/ .039 |
SP-40 / SPZ40* | 40 (42) / 1.1575 (1.654) | ±1/ .039 |
SP-50 | 50 / 1.968 | ±1/ .039 |
