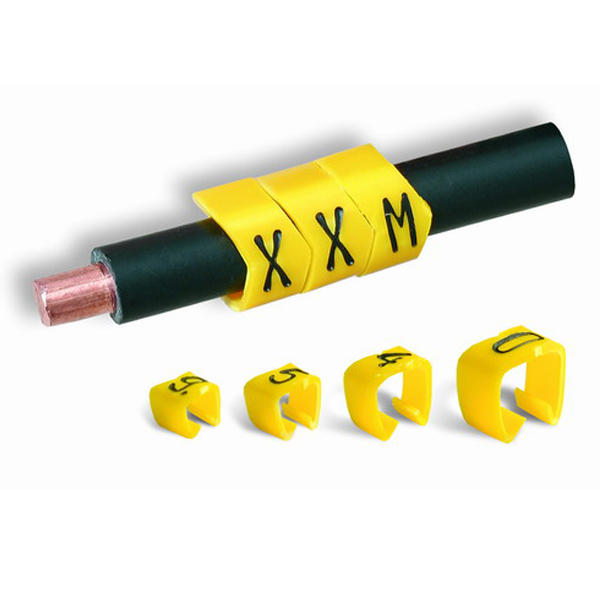

开口号码管,多种颜色规格
产品描述 | ||||
1. 开口式线标适用于已端接线缆,或者更换闭路电缆上的标识。 | ||||
2. 内扣式夹脚使线标紧扣在电缆上。 | ||||
3. 一按即扣,节约时间。 | ||||
4. 适用于电力、风力、水力系统。 | ||||
5. 线标与线标之间的内嵌式设计使安装后字符自动对齐。 | ||||
6. 极强的环境适应能力和优良的字符分辨率。 | ||||
7. 对于现场操作中难以进入做标识工作的设备内部(如配电柜背后),PARTEX提供特殊安装工具供您选购。 | ||||
PRODUCT OVERVIEW | ||||
1. OPEN MARKER SLEEVE FOR POST-TERMINATION MARKING. | ||||
2. SECURELY POSITIONED WITH THE HELP OF SPECIAL LEGS. | ||||
3. FAST, SNAP-ON INSTALLATION. | ||||
4. DESIGNED FOR ELECTRICAL, PNEUMATIC, HYDRAULIC APPLICATIONS ETC. | ||||
5. DESIGNED TO INTERLOCK WHEN FITTED, ENABLING EASY ALIGNMENT OF MULTIPLE CHARACTER MARKINGS. | ||||
6. HIGH ENVIRONMENTAL TOLERANCE AND EXCELLENT LEGIBILITY. | ||||
7. TOOLS AVAILABLE FOR NON-EASY ACCESS INSTALLATION, I.E. THE REAR OF CONTRAL CABINETS. | ||||
数据参数 | ||||
材质:PARTEX特殊配方的无镉硬质PVC。 | ||||
颜色:根据国际色标有11种颜色以及接地标识可供订购;其他颜色如果有需要的话,也可以定制。 | ||||
印刷:热箔刻印。 | ||||
工作温度:-30℃ ~ +60℃ | ||||
防火等级:UL94-V0 | ||||
其他性能:阻燃、抗化学腐蚀、抗伽玛射线、抗紫外线。 | ||||
标准字符:0-9, A-Z,以及其他各种标准或者特定字符或者标志可供选择。 | ||||
SPECIFICATION | ||||
MATERIAL: CADMIUM AND SILICON FREE, RIGID PVC ACCORDING TO SPECIAL PARTEX FORMULA. | ||||
COLOUR: 11 COLOURS ACCORDING TO THE INTERNATIONAL COLOR CODE AS WELL AS EARTH SYMBOL. | ||||
PRINT: HOT STAMPED. | ||||
TEMPERATURE: -30℃ ~ +60℃ | ||||
FLAMMABILITY RESISTANCE: UL94-V0 | ||||
PROPERTIES: SELF-EXTINGUISHING, GOOD RESISTANCE TO CHEMICALS, GAMMA AND UV RADIATION. | ||||
STANDARD LEGENDS: 0-9, A-Z, AND OTHER SPECIAL SYMBOLS AVAILABLE TO ORDER. | ||||
PART NUMBER | DIAMETER / AREA | SLEEVES LENGTH | PACKING | |
PC1/3 | 2.4-3.0 MM / 0.4-1.5 MM2 | 3 MM | UNLESS OTHERWISE SPECIFIED, PC MARKERS ARE SUPPLIED IN CONTINUOUS STRIPS WITH 20 MARKERS/STRIP. AN ENTIRE STRIP PACK COMPRISES 5 SMALLER BAGS, EACH CONTAINING 10 STRIPS OF 20 MARKERS, | STRIP PACK OF 1000 (5X200) |
PC2/3 | 3.0-4.0 MM / 1.5-3.0 MM2 | 3 MM | STRIP PACK OF 1000 (5X200) | |
PC3/3 | 4.0-5.0 MM / 3.0-4.0 MM2 | 3 MM | STRIP PACK OF 1000 (5X200) | |
PC4/4 | 5.0-6.2 MM / 4.0-5.0 MM2 | 4 MM | STRIP PACK OF 1000 (5X200) |
