TSS护线套,灯具专用
SPECIFICATIONS | ||||||||||
MATERIAL | TPE-THERMOPLASTIC ELASTOMER-UL APPROVED MATERIAL; | |||||||||
SUITABLE FOR HOLES IN MATERIALS OF 0.5-4.5MM THICKNESS; | ||||||||||
QUICK AND SIMPLE ASSEMBLY WITHOUT THE USE OF TOOLS; | ||||||||||
HANDLES EXCEPTIONALLY LARGE CABLE SPAN; | ||||||||||
AN-END-PLUG FOR ALL APPLICATIONS | ||||||||||
MODE OF PROTECTION | IP67 | |||||||||
TEMPERATURE RANGE | -50℃ - +125℃ | |||||||||
TEST STANDARD | IEC 60529, IP67 | |||||||||
SEMKO REPORT | M16-708555-1 ; M20-708555-2 ; M25-708555-3 ; M32-708555-4 HALOGEN FREE | |||||||||
COLOR | WHITE, BLACK AND GREY | |||||||||

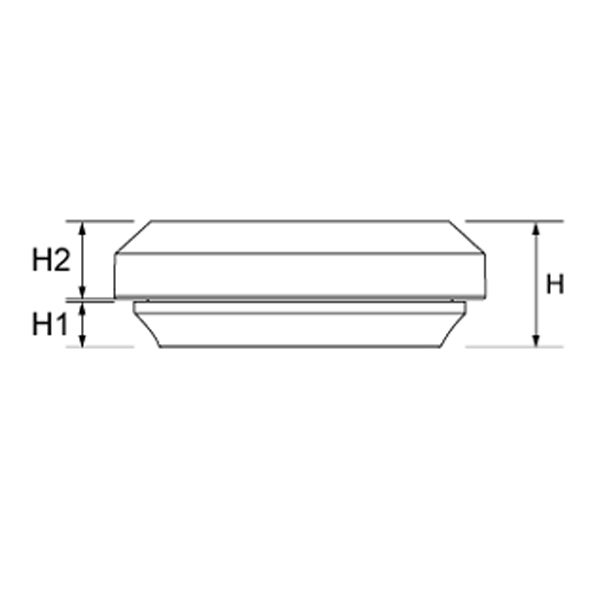

EASE CODE | SIZE | FOR CABLE/PIPE ΦMM | A | B | H | H1 MM | H2 MM | D* | D1 | PCS/ PACK |
TSS-M16 | M16 | 5-10 | 16.5 | 0.5-3 | 11 | 4 | 6.75 | 23.5 | 4 | 50 |
TSS-M20 | M20 | 6-13 | 20.5 | 0.5-3 | 11 | 4 | 6.75 | 27.5 | 5 | 50 |
TSS-M25 | M25 | 8-17 | 25.5 | 0.5-3.5 | 11 | 4 | 6.75 | 32.5 | 7 | 50 |
TSS-M32 | M32 | 12-24 | 32.5 | 0.5-4.5 | 11 | 4 | 6.75 | 39.5 | 11 | 25 |
