PHZ
PARTEX
39269090
| 数量： | |
|---|---|

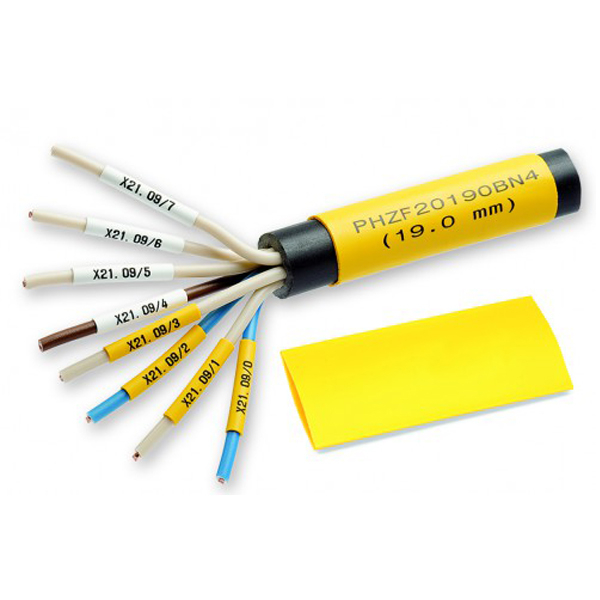

PARTEX可印字热缩套管,PHZ型号
SPECIFICATIONS | |||
FIXTURES: THIN WALL , ZERO HALOGEN SHRINKABLE TUBING | |||
MATERIAL: HALOGEN FREE TUBE SHRINK | |||
STANDARD COLOURS: BLACK, YELLOW, WHITE. NON-STANDARD COLOURS ARE AVAILABLE ON REQUEST. | |||
TEMPERATURE RANGE: CONTINUOUS OPERATING TEMPERATURE RANGE OF –30ºC TO +105ºC (–22OF TO +221OF). | |||
RESISTANCE: ACCORDING TO BS 6853:1999,ACCORDING TOCEN/TS 45545-2,ACCORDING TOUNI CEI 11170-3. | |||
TESTS | |||
PROPERTIES | TEST METHOD | TEST REQUIREMENTS | |
PHYSICAL | |||
TENSILE STRENGTH | ASTM D 638 | 10 N/MM2 | |
ELONGATION AT BREAK | ASTM D 638 | 200% | |
LONGITUDINAL CHANGE | ASTM D 2671 | ≤+5%, ≤-10% | |
WATER ABSORPTION | ASTM D 570 | ≤ 0.15% | |
SPECIFIC GRAVITY | ASTM D 792 | 1.4 G/CM3 | |
THERMAL | |||
CONTINUOUS OPERATING TEMPERATURE | -30° C TO +105°C | ||
MINIMUM SHRINK TEMPERATURE | > 90°C | ||
HEAT SHOCK 4 HOURS AT 175° C | ASTM D 638 | NO DRIPPING, CRACKING OR FLOWING | |
HEAT AGING 168 HOURS AT 175° C | ASTM D 2671 C | ELONGATION ≥100% | |
LOW TEMPERATURE FLEXIBILITY -30° C | ASTM D 635-HB | NO CRACKING | |
FLAMMABILITY | PASS | ||
CHEMICAL | |||
FUNGUS RESISTANCE | ASTM G21 | NO GROTH | |
CHEMICAL RESISTANCE | AMS-DTL-23053/5 | GOOD | |
COPPER CORROSION | ASTM D 2671 B | NO CORROSION | |
OXYGEN INDEX | EN ISO 4589-2 (1999) | 36% | |
ELECTRICAL | |||
DIELECTRIC STRENGTH | ASTM D 2671 | 20 KV/MM2 | |
VOLUME RESISTIVITY | ASTM D 257 | 1014 OHM CM | |
DIMENSIONS | |||
TYPE | DIAMETER MIN | DIAMETER MAX RECOVERED | AFTER SHRINKING WALL THICKNESS |
MM / TUM | MM / TUM | MM / TUM | |
PHZ20016 | 1.6 / .063 | 0.80 / 0.31 | 0.43 / .017 |
PHZ20024 | 2.4 / .094 | 1.20 / .047 | 0.51 / .020 |
PHZ20032 | 3.2 / .125 | 1.60 / .063 | 0.51 / .020 |
PHZ20048 | 4.8 / .189 | 2.40 / .095 | 0.51 / .020 |
PHZ20064 | 6.4 / .252 | 3.20 / .126 | 0.65 / .026 |
PHZ20095 | 9.5 / .374 | 4.70 / .185 | 0.65 / .026 |
PHZ20127 | 12.7 / .500 | 6.40 / .251 | 0.65 / .026 |
PHZ20190 | 19.1 / .752 | 9.50 / .375 | 0.77 / .030 |
PHZ20254 | 25.4 / 1.000 | 12.70 / .500 | 0.89 / .035 |
PHZ20381 | 38.1 / 1.500 | 19.10 / .750 | 1.00 / .039 |
PHZ20510 | 50.8 / 2.000 | 25.40 / 1.000 | 1.10 / .040 |
