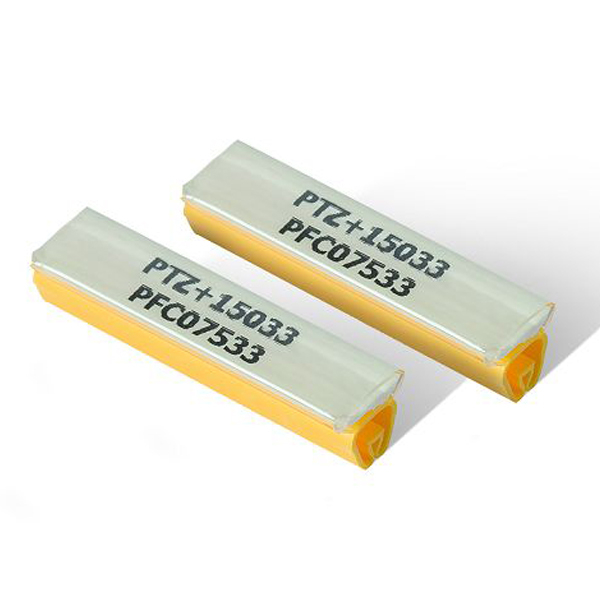

PARTEX无卤阻燃透明套管,PTZ型号
产品描述 | ||
1. 形状类似PA的封闭式线标，顶上带有椭圆形透明标签袋，可插入标签纸。 | ||
2. 波形设计加上两边的卡槽可以有效地减少套线时产生的摩擦力，更易于安装。 | ||
3. 拿住标签袋轻轻一按，PFC或者PF标签纸就可轻松插入。 | ||
4. 标签袋的弹性设计既能保护插入的标签纸又能固定其位置。 | ||
5. 标签纸或者标签牌可以在现场用简易标卡打印机或者激光、矩阵打印机打印。 | ||
PRODUCT OVERVIEW | ||
1. HOLDER SIMILAR TO PARTEX PA PROFILE WITH OVAL SHAPED POCKET FOR MARKER TAG, | ||
2. THE NEW IMPROVED BELLOW DESIGN WITH GROOVES DECREASES THE FRICTION WHEN PUSHING THE SLEEVE ON TO THE WIRE. | ||
3. FAST AND EASY INSERTION OF MARKER TAG PFC AND PF BY APPLYING PRESSURE ONCE ON MARKER POCKET. | ||
4. THE MARKER POCKET'S RESILIENT DESIGN PROTECTS AND FASTENS MARKER TAG, | ||
5. THE MARKING LABEL/TAG ARE PRINTED ON SITE EITHER BY EASY-TO-USE CARD PRINTER, LASER OR MATRIX PRINTERS. | ||
数据参数 | ||
材质：ZEREX材质，无卤、无镉无硅。 | ||
颜色：PTZ+标签管为黄色，标签袋为透明色。 | ||
工作温度：-30℃ ～ +90℃ | ||
防火等级：UL94-V0 | ||
其他性能：阻燃、抗化学腐蚀、抗伽玛射线、抗紫外线。 | ||
SPECIFICATION | ||
MATERIAL: ZEREX, FREE OF HALOGEN, CADMIUM AND SILICON. | ||
COLOUR: PTZ+ HAS A YELLOW COLOURD BASIC SLEEVE; THE POCKET IS TRANSPARENT. | ||
TEMPERATURE: -30℃ ～ +90℃ | ||
FLAMMABILITY RESISTANCE: UL94-V0 | ||
PROPERTIES: SELF-EXTINGUISHING, GOOD RESISTANCE TO CHEMICALS, GAMMA AND UV RADIATION. | ||
PART NUMBER | SLEEVE LENGTH | DIAMETER MM |
PTZ+02012A | 12 MM | 1.3-3.0 |
PTZ+10012A | 12 MM | 2.5-5.0 |
PTZ+20012A | 12 MM | 4.0-10.0 |
PTZ+02015A | 15 MM | 1.3-3.0 |
PTZ+10015A | 15 MM | 2.5-5.0 |
PTZ+20015A | 15 MM | 4.0-10.0 |
PTZ+02018A | 18 MM | 1.3-3.0 |
PTZ+10018A | 18 MM | 2.5-5.0 |
PTZ+20018A | 18 MM | 4.0-10.0 |
PTZ+02021A | 21 MM | 1.3-3.0 |
PTZ+10021A | 21 MM | 2.5-5.0 |
PTZ+20021A | 21 MM | 4.0-10.0 |
PTZ+30021A | 21 MM | 8.0-16.0 |
*AWG SIZE FOR GUIDANCE ONLY | ||
PTZ+15/25 SPECIAL DEMENSIONS, A COLOURED PROFILE OF PA TYPE WITH A LARGE, OVAL TRANSPARENT POCKET | ||
PART NUMBER | SLEEVE LENGTH | DIAMETER MM |
PTZ+15033 | 33 MM | 2.5-6.0 |
PTZ+25033 | 33 MM | 4.0-10.0 |
PF-08033KT9 | 33 MM | —— |
