TKS防水接头，专利产品
SPECIFICATIONS | |||||||||||
MATERIAL | TPE AND POLYAMIDE 66. UL APPROVED MATERIAL; | ||||||||||
INTEGRATED CABLE ANCHORAGE, WIDE SEALING RANGE; | |||||||||||
SUITABLE FOR HOLES IN MATERIALS OF 1.5-5MM THICKNESS; | |||||||||||
QUICK AND SIMPLE ASSEMBLY WITHOUT THE USE OF TOOLS; | |||||||||||
MODE OF PROTECTION | IP67 | ||||||||||
TEMPERATURE RANGE | -20℃ - +125℃ | ||||||||||
TEST STANDARD | EN60529:1991+A1 ; EN50262:1998 ; EMKO-TUI(03-SEC) FI001/84 | ||||||||||
SEMKO REPORT | 606620 | ||||||||||
COLOR: | WHITE, BLACK, AND LIGHT GREY | ||||||||||

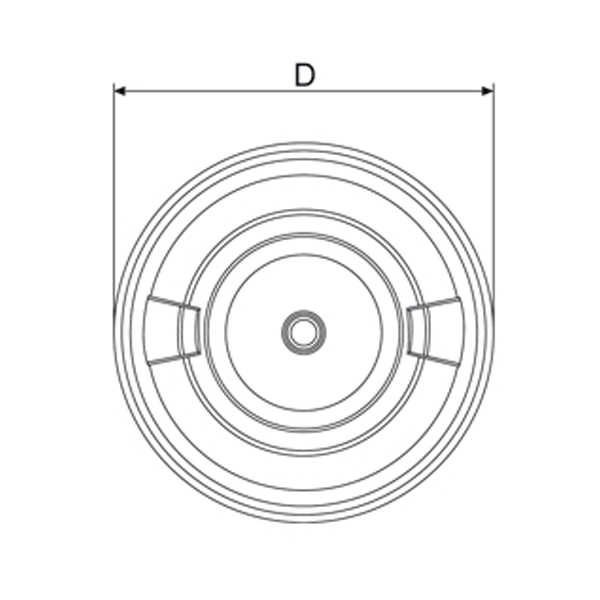

EASE CODE | SIZE | FOR CABLE/PIPEΦ | ANCHORAGE TYPE A* FOR CABLE Φ MM | A | B | B FOR IP67 | H | H2 | D1 | D*** | PCS/ PACK |
TKS-M20 | M20 | 4-11 | 7-11 | 20.5 | 1.5-5 | 2-5 | 17-20 | 5.7 | 4 | 29.3-34.5 | 50 |
TKS-M25 | M25 | 4-14 | 7-13** | 25.5 | 1.5-5 | 2-5 | 17-20 | 5.7 | 5 | 34.3-40.0 | 50 |
