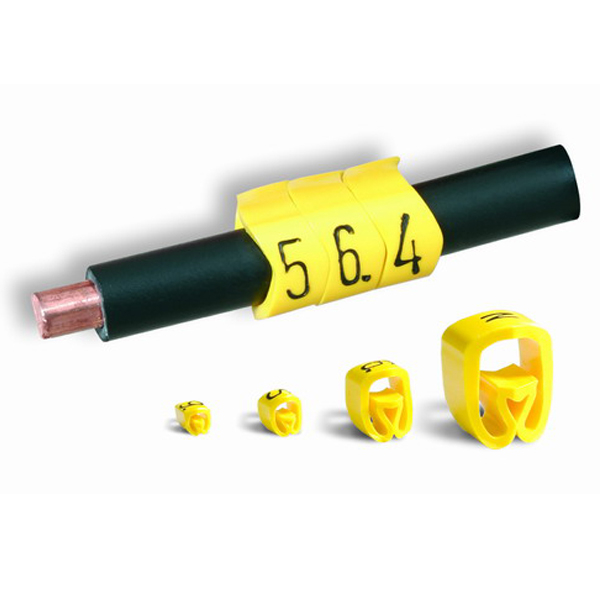

PARTEX线缆标识,PA型号
产品描述 | ||||
1. 封闭式线标,适用于开路导线、电缆。 | ||||
2. 适用于电力、风力、水力系统。 | ||||
3. 高质量热箔印刻技术。 | ||||
4. 具有弹性的内折式设计,线标内径可以随着线径的增大而扩展,从而增加了线径适用范围,减低了对同一字符的库存量。 | ||||
5. 线标与线标之间的内嵌式设计使安装后字符自动对齐。 | ||||
6. 极强的环境适应能力和优良的字符分辨率。 | ||||
PRODUCT OVERVIEW | ||||
1. Closed, secure makers sleeve for unconnected wires and cables. | ||||
2. Designed for electrical, pneumatic, hydraulic applications etc. | ||||
3. High quality hot-foil marking. | ||||
4. Unique profile with spring-action bellows covers a wide variety of diameters with a single mark size therefore reducing marker stock requirements. | ||||
5. Designed to interlock when fitted, enabling easy alignment of multiple character markings. | ||||
6. High environmental tolerance and excellent legibility. | ||||
数据参数 | ||||
材质:PARTEX特殊配方的无镉无硅柔软PVC。 | ||||
颜色:根据国际色标有11种颜色以及接地标识可供订购;其他颜色如果有需要的话,也可以定制。 | ||||
印刷:热箔刻印。 | ||||
工作温度:-30℃ ~ +60℃ | ||||
防火等级:UL94-V0 | ||||
其他性能:阻燃、抗化学腐蚀、抗伽玛射线、抗紫外线。 | ||||
标准字符:0-9, A-Z,以及其他各种标准或者特定字符或者标志可供选择。 | ||||
SPECIFICATION | ||||
MATERIAL: Cadmium and silicon free, soft PVC according to special PARTEX formula. | ||||
COLOUR: 11 colours according to the International Color Code as well as earth symbol. | ||||
PRINT: Hot-foil stamped. | ||||
TEMPERATURE: -30℃ ~ +60℃ | ||||
FLAMMABILITY RESISTANCE: UL94-V0 | ||||
PROPERTIES: Self-extinguishing, good resistance to chemicals, gamma and UV radiation. | ||||
STANDARD LEGENDS: 0-9, A-Z, and other special symbols available to order. | ||||
PART NUMBER | DIAMETER / AREA | SLEEVES LENGTH | SEMI CUT MARKER | LOOSE, CUT MARKER |
PA02/3 | 1.3-3.0 MM / 0.2-1.5 MM2 | 3 MM | REEL OF 1000 | SINGLE BAG OF 250 PCS 10 STRIPS OF 25 MARKERS STRIP PACK OF 1000 (5X200) |
COMPACTADISCS OF 500 | ||||
PA1/3 | 2.5-5.0 MM / 1.5-4.0 MM2 | 3 MM | REEL OF 1000 | SINGLE BAG OF 250 PCS 10 STRIPS OF 25 MARKERS STRIP PACK OF 1000 (5X200) |
COMPACTADISCS OF 500 | ||||
PA2/4 | 4.0-10.0 MM / 2.5-16.0 MM2 | 4 MM | COMPACTADISCS OF 250ST | STRIP PACK OF 500 (5X100) |
PA3/6 | 8.0-16.0 MM / 16.0-70.0 MM2 | 6 MM | STRIP PACK OF 100 (5X20) |
