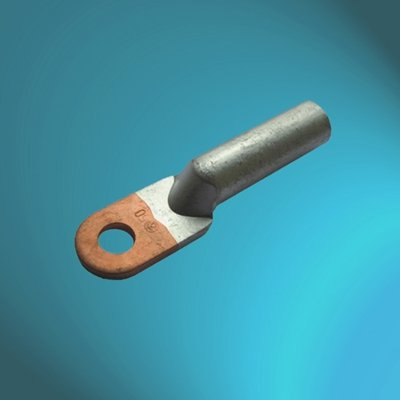

DTL-1 铜铝端子
说明 | |||||||||
材料 | 高导电率紫铜，铝 | ||||||||
纯度 | 紫铜> 99.9% 铝> 99.5% | ||||||||
高导电率原材料 | |||||||||
摩擦焊接工艺 | |||||||||
进口导电膏 | |||||||||
EASE CODE | Φ | D | d | L1 | L2 | L3 | L | A | B |
TU-DTL-1-16 | 8.5 | 11 | 6 | 32 | 47 | 23 | 70 | 3 | 16 |
TU-DTL-1-25 | 8.5 | 12 | 7 | 34 | 47 | 28 | 75 | 3.2 | 18 |
TU-DTL-1-35 | 10.5 | 14 | 8.5 | 37 | 55 | 30 | 85 | 3.6 | 20 |
TU-DTL-1-50 | 10.5 | 16 | 9.5 | 40 | 60 | 30 | 90 | 4.2 | 23 |
TU-DTL-1-70 | 12.5 | 18 | 11.5 | 43 | 68 | 34 | 102 | 4.6 | 26 |
TU-DTL-1-95 | 12.5 | 21 | 13.5 | 50 | 70 | 40 | 110 | 4.8 | 28 |
TU-DTL-1-120 | 14.5 | 23 | 15 | 55 | 80 | 40 | 120 | 5.4 | 30 |
TU-DTL-1-150 | 14.5 | 25 | 16.5 | 55 | 82 | 43 | 125 | 5.8 | 33 |
TU-DTL-1-185 | 16.5 | 28 | 18.5 | 57 | 90 | 46 | 136 | 6.7 | 37 |
TU-DTL-1-240 | 16.5 | 30 | 21 | 61 | 98 | 50 | 148 | 7 | 40 |
TU-DTL-1-300 | 21 | 35 | 23 | 72 | 110 | 70 | 180 | 9 | 50 |
TU-DTL-1-400 | 21 | 38 | 26.5 | 76 | 115 | 70 | 185 | 9.5 | 55 |
TU-DTL-1-500 | 21 | 40 | 29.5 | 77 | 125 | 75 | 200 | 10 | 55 |
