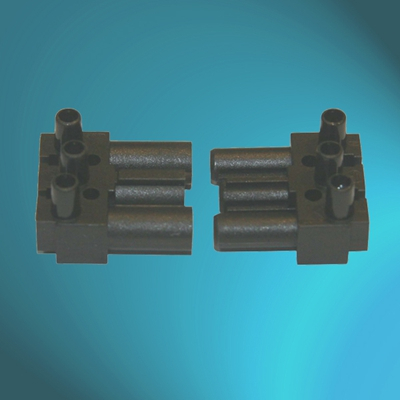

Pluggable Terminal Blocks -3 Pole Round
插拔式快速接线端子-圆口
FEATURES |
1.with /without protection cover/base plate |
2.Compliant with EN 61984 (VDE0627) |
3.Touch-proof/ Safe when disconnected under loading |
4. Protection class: When fully assembled with protection covers/base-plates - IP30 |
5.Color : Black/White ; other colours upon request |
SPECIFICATION |
1.Housing : Polyamide 66 (94-V2 grade) |
2.Metal Parts : Plate Brass/Stainless Steel Spring |
3.Ambient Temperature : T110 ℃ |
4.Wiring Capacity : 0.5 - 2.5mm2 (terminal part) |
5.Voltage/Ampere Rating : 250V/16A |
* For fitting to 3-cord Round Cable. (up to 1.5mm2) |
