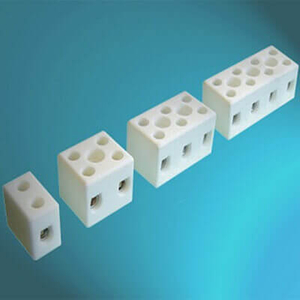

耐高温陶瓷端子-定制款

INSERTS:

NICKEL PLATED BRASS

HOUSING:

CERAMIC (STEATITE CERAMIC & ALUMINA)

TEMP.:

1000℃

SCREWS:

GALVANISED STEEL

STANDARD:

CE (BS EN 60998)

COLOR:

WHITE

EASE CODE

CROSS SECTION

CURRENT RANGE

RATED VOLTAGE

DIMENSIONS (mm)

W

L

Φ1

Φ2

D

d

H

CPO-DQ13-5A-3P

4 mm2

5-32A

450V

17.5

29.8

5.4

6.1

10.5

7.5

15.5

Cross Section: rated for rigid wire and cables (if for flexible wire, it should be reduced one-step, i.e. 6mm2  is 4mm2
Φ1 wire entry hole diameter
Φ2 fixing hole diameter
