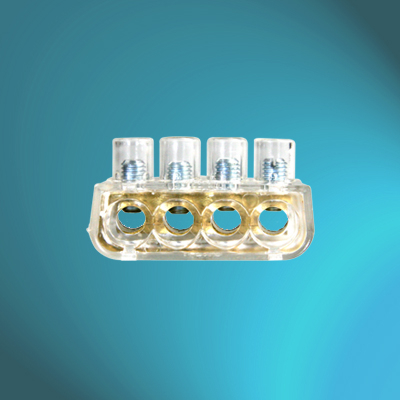

PC透明单向开口型接线端子-4孔

INSERTS:

BRASS

HOUSING:

POLYCARBONATE (PC)

TEMP.:

85℃ MAX 130℃

SCREWS:

GALVANISED STEEL

STANDARD:

IMQ & CE

COLOR:

CLEAR

FEATURE:

RIGID & EASY CUT

FLAME RETARDANT
ALL SCREWS ARE CAPTIVE & RAISED FOR EASY WIRING
IP20

EASE CODE

POLES

CROSS SECTION

CURRENT RANGE

RATED VOLTAGE

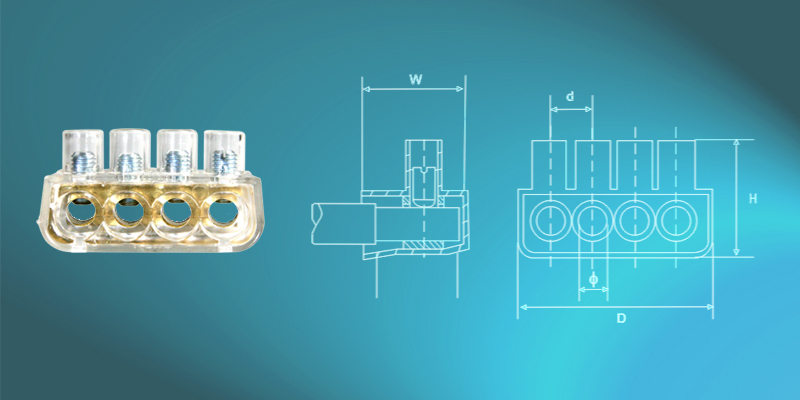

DIMENSIONS (mm)

W

Φ

D

d

H

COE-F4-6

4

6 mm2

41A

450V

14

3.5

24.5

6.5

15.25

COE-F4-10

4

10 mm2

57A

450V

22

4.5

31.5

6.5

22

COE-F4-16

4

16 mm2

76A

450V

22.25

5.5

41.5

9

22

COE-F4-25

4

25 mm2

101A

450V

25

7

49

10

36

COE-F4-35

4

35 mm2

125A

500V

30.75

8.5

61

13

35.75

Cross Section: rated for flexible cable and wire
Φ1 wire entry hole diameter
Φ2 fixing hole diameter
