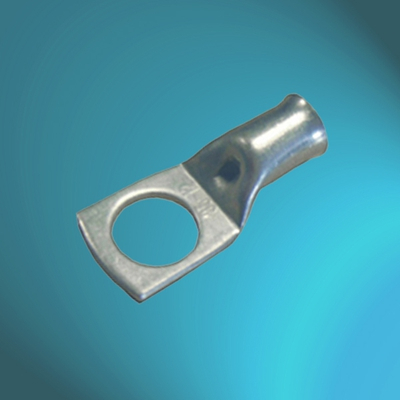

英标铜管端子
说明
材料： 高传导性紫铜BS2871
纯度： >99.9%
涂层： 锡
EASE CODE | CABLE RANGE | STUD | Φ | D | d | W | L |
(mm) 2 | |||||||
TU-BS-10/5 | 10 | 5/6 | 5.4/6.4 | 6.6 | 4.7 | 10.8 | 26 |
TU-BS-10/8 | 8 | 8.5 | 6.6 | 4.7 | 13.5 | 29.5 | |
TU-BS-10/10 | 10 | 10.5 | 6.9 | 4.4 | 16 | 39 | |
TU-BS-10/12 | 12 | 12.8 | 6.9 | 4.4 | 18 | 39 | |
TU-BS-16/6 | 16 | 6 | 6.4 | 7.5 | 5.5 | 10.8 | 30 |
TU-BS-16/8 | 8 | 8.5 | 7.5 | 5.5 | 13.5 | 30 | |
TU-BS-16/10 | 10 | 10.5 | 7.5 | 5.5 | 15 | 35.5 | |
TU-BS-16/12 | 12 | 12.8 | 8 | 5.6 | 18 | 42 | |
TU-BS-25/6 | 25 | 6 | 6.4 | 9.4 | 7 | 13.8 | 32.5 |
TU-BS-25/8 | 8 | 8.5 | 9.4 | 7 | 13.8 | 32.5 | |
TU-BS-25/10 | 10 | 10.5 | 9.4 | 7 | 16 | 38 | |
TU-BS-25/12 | 12 | 12.8 | 9.4 | 7 | 18 | 38 | |
TU-BS-35/6 | 35 | 6 | 6.4 | 10.6 | 8.2 | 15.3 | 35 |
TU-BS-35/8 | 8 | 8.5 | 10.6 | 8.2 | 15.3 | 35 | |
TU-BS-35/10 | 10 | 10.5 | 10.6 | 8.2 | 15.3 | 40.5 | |
TU-BS-35/12 | 12 | 12.8 | 10.6 | 8.2 | 18 | 40.5 | |
TU-BS-50/6 | 50 | 6 | 6.4 | 11.9 | 9.5 | 17.4 | 37 |
TU-BS-50/8 | 8 | 8.5 | 11.9 | 9.5 | 17.4 | 37 | |
TU-BS-50/10 | 10 | 10.5 | 11.9 | 9.5 | 17.4 | 42.5 | |
TU-BS-50/12 | 12 | 12.8 | 11.9 | 9.5 | 17.4 | 42.5 | |
TU-BS-70/6 | 70 | 6 | 6.4 | 14.5 | 11.5 | 20.9 | 40.5 |
TU-BS-70/8 | 8 | 8.5 | 14.5 | 11.5 | 20.9 | 40.5 | |
TU-BS-70/10 | 10 | 10.5 | 14.5 | 11.5 | 20.9 | 46 | |
TU-BS-70/12 | 12 | 12.8 | 14.5 | 11.5 | 20.9 | 46 | |
TU-BS-70/14 | 14/16 | 14.7/16.7 | 14.5 | 11.5 | 20.9 | 50 | |
TU-BS-95/8 | 95 | 8 | 8.5 | 16.7 | 13.5 | 24.3 | 49.5 |
TU-BS-95/10 | 10 | 10.5 | 16.7 | 13.5 | 24.3 | 49.5 | |
TU-BS-95/12 | 12 | 12.8 | 16.7 | 13.5 | 24.3 | 49.5 | |
TU-BS-95/14 | 14/16 | 14.7/16.7 | 16.7 | 13.5 | 24.3 | 56 | |
TU-BS-120/10 | 120 | 10 | 10.5 | 19 | 15 | 27.3 | 55.5 |
TU-BS-120/12 | 12 | 12.8 | 19 | 15 | 27.3 | 55.5 | |
TU-BS-120/14 | 14 | 14.7 | 19 | 15 | 27.3 | 55.5 | |
TU-BS-120/16 | 16 | 16.7 | 19 | 15 | 27.3 | 60 | |
TU-BS-150/10 | 150 | 10 | 10.5 | 21 | 16.5 | 30.2 | 61 |
TU-BS-150/12 | 12 | 12.8 | 21 | 16.5 | 30.2 | 61 | |
TU-BS-150/14 | 14 | 14.7 | 21 | 16.5 | 30.2 | 61 | |
TU-BS-150/16 | 16 | 16.7 | 21 | 16.5 | 30.2 | 65 | |
TU-BS-185/10 | 185 | 10 | 10.5 | 23 | 18.5 | 33.3 | 66.5 |
TU-BS-185/12 | 12 | 12.8 | 23 | 18.5 | 33.3 | 68 | |
TU-BS-185/14 | 14 | 14.7 | 23 | 18.5 | 33.3 | 68 | |
TU-BS-185/16 | 16 | 16.7 | 23 | 18.5 | 33.3 | 70 | |
TU-BS-240/10 | 240 | 10/12/14/16/20 | 10.5-20.7 | 26 | 21 | 37.7 | 88 |
TU-BS-300/12 | 300 | 10/12/14/16/20 | 10.5-20.7 | 28 | 23 | 41 | 97 |
TU-BS-400/14 | 400 | 10/12/14/16/20 | 10.5-20.7 | 32 | 27 | 47.3 | 108 |
TU-BS-500/16 | 500 | 10/12/14/16/20 | 10.5-20.7 | 36 | 30 | 53 | 117 |
