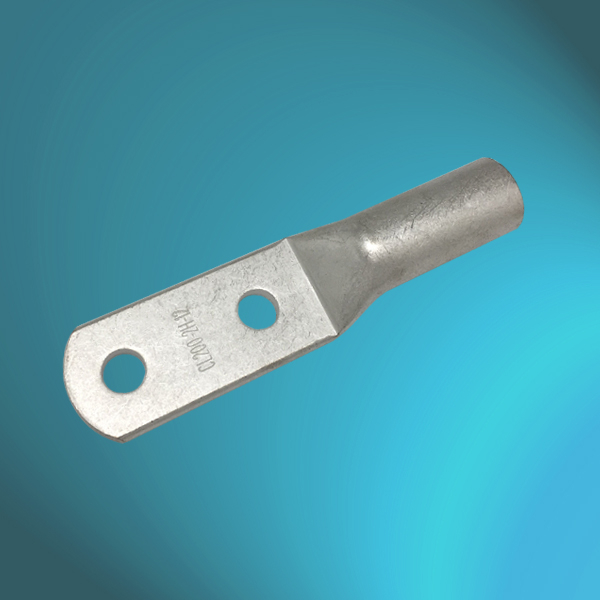

双固定孔铜管端子
CL-2H TYPE
说明
材料： 高传导性紫铜BS2871
纯度： >99.9%
涂层： 锡
EASE CODE | Φ | D | d | W | L | P | C | B |
TU-DH-14/6LP | 6.4 | 8.8 | 5.8 | 13 | 117.5 | 80 | 45 | 28.5 |
TU-DH-22/8LP | 8.4 | 11.3 | 7.7 | 16 | 119.2 | 80 | 45 | 28.5 |
TU-DH-38/10LP | 10.5 | 12.4 | 9.8 | 18.3 | 120 | 80 | 45 | 31.7 |
TU-DH-38/12LP | 13 | 12.4 | 9.8 | 18.3 | 120 | 80 | 45 | 31.7 |
TU-DH-60/10LP | 10.5 | 14 | 11 | 20.5 | 130 | 75 | 45 | 40 |
TU-DH-60/12LP | 13 | 14 | 11 | 20.5 | 130 | 75 | 45 | 40 |
TU-DH-70/10LP | 10.5 | 15 | 12 | 21.4 | 130 | 80 | 45 | 40 |
TU-DH-70/12LP | 13 | 15 | 12 | 21.4 | 130 | 80 | 45 | 40 |
TU-DH-80/12LP | 13 | 16 | 13 | 23.2 | 130 | 80 | 45 | 40 |
TU-DH-100/12LP | 13 | 18 | 14 | 26 | 132 | 80 | 45 | 42 |
TU-DH-125/12LP | 13 | 20 | 16 | 29 | 135 | 80 | 45 | 42 |
TU-DH-150/12LP | 13 | 22 | 17 | 31 | 150 | 80 | 45 | 50 |
TU-DH-180/12LP | 13 | 23 | 18.2 | 33 | 150 | 80 | 45 | 50 |
TU-DH-200/12LP | 13 | 26 | 20 | 36 | 150 | 80 | 45 | 50 |
TU-DH-250/12LP | 13 | 28 | 22 | 40 | 150 | 80 | 45 | 50 |
TU-DH-325/12LP | 13 | 32 | 25 | 45 | 180 | 89 | 45 | 55 |
TU-DH-400/12LP | 13 | 37 | 30 | 54 | 180 | 90 | 45 | 60 |
TU-DH-500/12LP | 13 | 40 | 31 | 56 | 180 | 93 | 45 | 60 |
