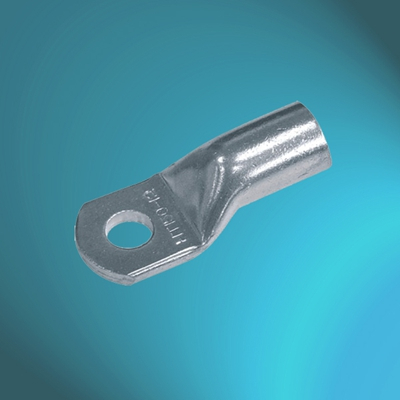

德规铜管端子-标准型

(mm) 2

TU-GS-2.5/3

2.5

3

3.2

4.2

2.3

7.5

3.25

4

12

TU-GS-2.5/4

4

4.3

7.5

4

5

13

TU-GS-2.5/5

5

5.5

8.5

4.75

5.5

14

TU-GS-2.5/6

6

6.5

9.5

6.5

6.5

16

TU-GS-2.5/8

8

8.5

13

7.75

9.5

20

TU-GS-4/4

4

4

4.3

5

3

8.5

4.75

5.5

17

TU-GS-4/5

5

5.5

9

4.75

6

17

TU-GS-4/6

6

6.5

10

6.5

6.5

19

TU-GS-4/8

8

8.5

13

8.5

9.5

22

TU-GS-6/5

6

5

5.5

6.5

3.5

10

6.5

7.5

21

TU-GS-6/6

6

6.5

12

6.5

7.5

21

TU-GS-6/8

8

8.5

15

10

10

23

TU-GS-6/10

10

10.5

17

12

12

25

TU-GS-6/12

12

13

19

13

13

28

TU-GS-10/5

10

5

5.5

7

4.5

12

6.5

7.5

22

TU-GS-10/6

6

6.5

12

6.5

7.5

22

TU-GS-10/8

8

8.5

15

10

10

25

TU-GS-10/10

10

10.5

17

12

12

27

TU-GS-10/12

12

13

19

13

13

29

TU-GS-16/5

16

5

5.5

8.5

5.5

12

5.5

6.5

26

TU-GS-16/6

6

6.5

12

6.25

7.5

27

TU-GS-16/8

8

8.5

15

8.5

9.5

29

TU-GS-16/10

10

10.5

17

10.5

11.5

31

TU-GS-16/12

12

13

19

12

13

33

TU-GS-25/5

25

5

5.5

10

7

14

7.5

7.5

30

TU-GS-25/6

6

6.5

14

7.5

7.5

30

TU-GS-25/8

8

8.5

16

10

10

32

TU-GS-25/10

10

10.5

18

12

12

34

TU-GS-25/12

12

13

19

13

13

35

TU-GS-25/14

14

15

21

14.5

14.5

38

TU-GS-35/6

35

6

6.5

12

8.5

17

7.5

7.5

32

TU-GS-35/8

8

8.5

17

10

10

34

TU-GS-35/10

10

10.5

19

12

12

37

TU-GS-35/12

12

13

21

13

13

38

TU-GS-35/14

14

15

21

14.5

14.5

40

TU-GS-35/16

16

17

26

16

16

42

TU-GS-50/6

50

6

6.5

14

10

20

10

10

37

TU-GS-50/8

8

8.5

20

10

10

37

TU-GS-50/10

10

10.5

20

12

12

39

TU-GS-50/12

12

13

23

13

13

43

TU-GS-50/14

14

15

23

14.5

14.5

45

TU-GS-50/16

16

17

28

16

16

46

TU-GS-50/20

20

21

30

19

19

48

TU-GS-70/6

70

6

6.5

16.5

12

23

10

10

43

TU-GS-70/8

8

8.5

23

10

10

43

TU-GS-70/10

10

10.5

23

12

12

44

TU-GS-70/12

12

13

23

13

13

46

TU-GS-70/14

14

15

23

14.5

14.5

48

TU-GS-70/16

16

17

28

16

16

50

TU-GS-70/20

20

21

30

19

19

53

TU-GS-95/8

95

8

8.5

18

13.5

26

12

12

48

TU-GS-95/10

10

10.5

26

12

12

48

TU-GS-95/12

12

13

26

13

13

49

TU-GS-95/14

14

15

26

14.5

14.5

51

TU-GS-95/16

16

17

28

16

16

54

TU-GS-95/20

20

21

36

22

22

60

TU-GS-120/8

120

8

8.5

19.5

15

28

14

14

51

TU-GS-120/10

10

10.5

28

14

14

51

TU-GS-120/12

12

13

28

14

14

51

TU-GS-120/14

14

15

28

15

15

52

TU-GS-120/16

16

17

30

16

16

54

TU-GS-120/20

20

21

36

22

22

63

TU-GS-150/8

150

8

8.5

21

16.5

31

14

14

56

TU-GS-150/10

10

10.5

31

14

14

56

TU-GS-150/12

12

13

31

15

15

57

TU-GS-150/14

14

15

31

15

15

57

TU-GS-150/16

16

17

31

16

16

58

TU-GS-150/20

20

21

36

22

22

66

TU-GS-185/10

185

10

10.5

24

19

35

18

18

65

TU-GS-185/12

12

13

35

18

18

65

TU-GS-185/14

14

15

35

18

18

65

TU-GS-185/16

16

17

35

18

18

65

TU-GS-185/20

20

21

39

22

22

69

TU-GS-240/10

240

10

10.5

26

21

39

21.5

19

72

TU-GS-240/12

12

13

39

21.5

19

72

TU-GS-240/14

14

15

39

21.5

19

72

TU-GS-240/16

16

17

39

21.5

19

72

TU-GS-240/20

20

21

39

21.5

19

72

TU-GS-300/12

300

12

13

29.5

23.5

43

24

24

87

TU-GS-300/14

14

15

43

24

24

87

TU-GS-300/16

16

17

43

24

24

87

TU-GS-300/20

20

21

43

24

24

87

TU-GS-400/12

400

12

13

34

27

49

24

24

90

TU-GS-400/14

14

15

49

24

24

90

TU-GS-400/16

16

17

49

24

24

90

TU-GS-400/20

20

21

49

24

24

90
