SP铜管端子
说明
材料： 高传导性紫铜BS2871
纯度： >99.9%
涂层： 锡

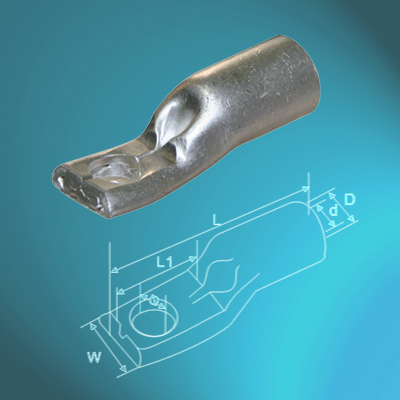

EASE CODE | CABLE RANGE (mm) 2 | STUD | Φ | D | d | W | L1 | L |
TU-SP-50/8 | 50 | 8 | 8.5 | 12.6 | 9.8 | 15 | 22 | 50 |
TU-SP-50/10 | 50 | 10 | 10.5 | 12.6 | 9.8 | 15 | 22 | 50 |
TU-SP-70/8 | 70 | 8 | 8.5 | 14.7 | 11.5 | 15 | 24 | 55 |
TU-SP-70/10 | 70 | 10 | 10.5 | 14.7 | 11.5 | 15 | 24 | 55 |
TU-SP-95/8 | 95 | 8 | 8.5 | 16.9 | 13.5 | 15 | 27 | 60 |
TU-SP-95/10 | 95 | 10 | 10.5 | 16.9 | 13.5 | 15 | 27 | 60 |
TU-SP-120/8 | 120 | 8 | 8.5 | 19.9 | 15.6 | 21 | 31 | 65 |
TU-SP-120/10 | 120 | 10 | 10.5 | 19.9 | 15.6 | 21 | 31 | 65 |
TU-SP-150/10 | 150 | 10 | 10.5 | 20.9 | 16.5 | 21 | 33 | 72 |
TU-SP-150/12 | 150 | 12 | 12.5 | 20.9 | 16.5 | 21 | 33 | 72 |
TU-SP-185/10 | 185 | 10 | 10.5 | 23.7 | 18.8 | 26 | 35 | 75 |
TU-SP-185/12 | 185 | 12 | 12.5 | 23.7 | 18.8 | 26 | 35 | 75 |
TU-SP-240/10 | 240 | 10 | 10.5 | 26.2 | 21.2 | 26 | 42 | 85 |
TU-SP-240/12 | 240 | 12 | 12.5 | 26.2 | 21.2 | 26 | 42 | 85 |
SP铜管端子
说明
材料： 高传导性紫铜BS2871
纯度： >99.9%
涂层： 锡
EASE CODE | CABLE RANGE (mm) 2 | STUD | Φ | D | d | W | L1 | L |
TU-SP-50/8 | 50 | 8 | 8.5 | 12.6 | 9.8 | 15 | 22 | 50 |
TU-SP-50/10 | 50 | 10 | 10.5 | 12.6 | 9.8 | 15 | 22 | 50 |
TU-SP-70/8 | 70 | 8 | 8.5 | 14.7 | 11.5 | 15 | 24 | 55 |
TU-SP-70/10 | 70 | 10 | 10.5 | 14.7 | 11.5 | 15 | 24 | 55 |
TU-SP-95/8 | 95 | 8 | 8.5 | 16.9 | 13.5 | 15 | 27 | 60 |
TU-SP-95/10 | 95 | 10 | 10.5 | 16.9 | 13.5 | 15 | 27 | 60 |
TU-SP-120/8 | 120 | 8 | 8.5 | 19.9 | 15.6 | 21 | 31 | 65 |
TU-SP-120/10 | 120 | 10 | 10.5 | 19.9 | 15.6 | 21 | 31 | 65 |
TU-SP-150/10 | 150 | 10 | 10.5 | 20.9 | 16.5 | 21 | 33 | 72 |
TU-SP-150/12 | 150 | 12 | 12.5 | 20.9 | 16.5 | 21 | 33 | 72 |
TU-SP-185/10 | 185 | 10 | 10.5 | 23.7 | 18.8 | 26 | 35 | 75 |
TU-SP-185/12 | 185 | 12 | 12.5 | 23.7 | 18.8 | 26 | 35 | 75 |
TU-SP-240/10 | 240 | 10 | 10.5 | 26.2 | 21.2 | 26 | 42 | 85 |
TU-SP-240/12 | 240 | 12 | 12.5 | 26.2 | 21.2 | 26 | 42 | 85 |
