ES标准铜管端子
说明
材料： 高传导性紫铜BS2871
纯度： >99.9%
涂层： 锡

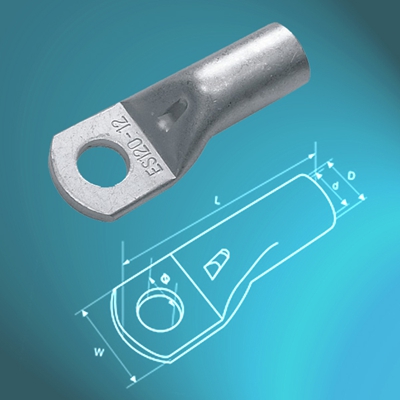

EASE CODE | CABLE RANGE | STUD | Φ | D | d | W | L |
(mm) 2 | |||||||
TU-CF-1.5/5 | 1.5 | 5 | 5.3 | 3.7 | 1.8 | 10.0 | 19.0 |
TU-CF-2.5/5 | 2.5 | 5 | 5.3 | 3.9 | 2.3 | 10.0 | 20.0 |
TU-CF-2.5/6 | 6 | 6.5 | 3.9 | 2.3 | 10.0 | 20.0 | |
TU-CF-4/5 | 4 | 5 | 5.3 | 4.7 | 3 | 10.0 | 22.0 |
TU-CF-4/6 | 6 | 6.5 | 4.7 | 3 | 10.0 | 23.0 | |
TU-CF-6/5 | 6 | 5 | 5.3 | 5.9 | 4 | 10.0 | 24.6 |
TU-CF-6/6 | 6 | 6.3 | 5.9 | 4 | 11.0 | 24.6 | |
TU-CF-6/8 | 8 | 8.3 | 5.9 | 4 | 12.5 | 27.3 | |
TU-CF-6/10 | 10 | 10.3 | 6.2 | 4 | 15.0 | 28.5 | |
TU-CF-10/5 | 10 | 5 | 5.3 | 6.6 | 4.5 | 11.0 | 30.0 |
TU-CF-10/6 | 6 | 6.5 | 6.6 | 4.5 | 11.0 | 30.0 | |
TU-CF-10/8 | 8 | 8.3 | 6.6 | 4.5 | 12.5 | 30.0 | |
TU-CF-10/10 | 10 | 10.3 | 6.9 | 4.5 | 16.0 | 34.1 | |
TU-CF-10/12 | 12 | 12.7 | 6.9 | 4.5 | 18.0 | 34.1 | |
TU-CF-16/5 | 16 | 5 | 5.3 | 7.5 | 5.5 | 11.0 | 30.7 |
TU-CF-16/6 | 6 | 6.5 | 7.5 | 5.5 | 11.0 | 30.7 | |
TU-CF-16/8 | 8 | 8.3 | 7.5 | 5.5 | 12.5 | 30.7 | |
TU-CF-16/10 | 10 | 10.3 | 7.5 | 5.5 | 16.0 | 35.9 | |
TU-CF-16/12 | 12 | 12.7 | 8.1 | 5.5 | 18.0 | 35.9 | |
TU-CF-25/5 | 25 | 5 | 5.3 | 9.1 | 6.7 | 13.0 | 32.2 |
TU-CF-25/6 | 6 | 6.5 | 9.1 | 6.7 | 13.0 | 32.2 | |
TU-CF-25/8 | 8 | 8.3 | 9.1 | 6.7 | 13.0 | 32.2 | |
TU-CF-25/10 | 10 | 10.3 | 9.1 | 6.7 | 16.0 | 36.9 | |
TU-CF-25/12 | 12 | 12.7 | 9.1 | 6.7 | 18.0 | 36.9 | |
TU-CF-35/5 | 35 | 5 | 5.3 | 11 | 8.6 | 16.0 | 37.6 |
TU-CF-35/6 | 6 | 6.5 | 11 | 8.6 | 16.0 | 37.6 | |
TU-CF-35/8 | 8 | 8.3 | 11 | 8.6 | 16.0 | 37.6 | |
TU-CF-35/10 | 10 | 10.3 | 11 | 8.6 | 17.0 | 41.5 | |
TU-CF-35/12 | 12 | 12.7 | 11 | 8.6 | 18.0 | 41.5 | |
TU-CF-50/5 | 50 | 5 | 5.3 | 12.4 | 9.5 | 18.0 | 41.0 |
TU-CF-50/6 | 6 | 6.5 | 12.4 | 9.5 | 18.0 | 41.0 | |
TU-CF-50/8 | 8 | 8.3 | 12.4 | 9.5 | 18.0 | 41.0 | |
TU-CF-50/10 | 10 | 10.3 | 12.4 | 9.5 | 18.0 | 44.0 | |
TU-CF-50/12 | 12 | 12.7 | 12.4 | 9.5 | 19.0 | 44.0 | |
TU-CF-50/14 | 14 | 14.8 | 12.4 | 9.5 | 21.0 | 52.8 | |
TU-CF-50/16 | 16 | 16.5 | 12.4 | 9.5 | 23.0 | 52.8 | |
TU-CF-70/5 | 70 | 5 | 5.3 | 15 | 12 | 22.5 | 52.4 |
TU-CF-70/6 | 6 | 6.3 | 15 | 12 | 22.5 | 52.4 | |
TU-CF-70/8 | 8 | 8.3 | 15 | 12 | 22.5 | 52.4 | |
TU-CF-70/10 | 10 | 10.3 | 15 | 12 | 22.5 | 52.4 | |
TU-CF-70/12 | 12 | 12.7 | 15 | 12 | 22.5 | 52.4 | |
TU-CF-70/14 | 14 | 14.8 | 15 | 12 | 22.5 | 55.0 | |
TU-CF-70/16 | 16 | 16.5 | 15 | 12 | 24.0 | 55.0 | |
TU-CF-95/8 | 95 | 8 | 8.3 | 17 | 13.4 | 25.0 | 54.7 |
TU-CF-95/10 | 10 | 10.3 | 25.0 | 54.7 | |||
TU-CF-95/12 | 12 | 12.7 | 25.0 | 54.7 | |||
TU-CF-95/14 | 14 | 14.8 | 25.0 | 58.3 | |||
TU-CF-95/16 | 16 | 16.8 | 25.0 | 58.3 | |||
TU-CF-120/8 | 120 | 8 | 8.3 | 19 | 15 | 27.5 | 60.0 |
TU-CF-120/10 | 10 | 10.3 | 27.5 | 60.0 | |||
TU-CF-120/12 | 12 | 12.7 | 27.5 | 60.0 | |||
TU-CF-120/14 | 14 | 14.8 | 27.5 | 64.0 | |||
TU-CF-120/16 | 16 | 16.5 | 27.5 | 64.0 | |||
TU-CF-150/10 | 150 | 10 | 10.3 | 21.2 | 16.5 | 30.8 | 67.0 |
TU-CF-150/12 | 12 | 12.7 | 30.8 | 67.0 | |||
TU-CF-150/14 | 14 | 14.8 | 30.8 | 67.0 | |||
TU-CF-150/16 | 16 | 16.5 | 30.8 | 71.4 | |||
TU-CF-150/20 | 20 | 20.9 | 30.8 | 71.4 | |||
TU-CF-185/10 | 185 | 10 | 10.3 | 23 | 19 | 34.0 | 73.0 |
TU-CF-185/12 | 12 | 12.7 | 34.0 | 73.0 | |||
TU-CF-185/14 | 14 | 14.8 | 34.0 | 73.0 | |||
TU-CF-185/16 | 16 | 16.5 | 34.0 | 76.2 | |||
TU-CF-185/20 | 20 | 20.9 | 34.0 | 76.2 | |||
TU-CF-240/10 | 240 | 10 | 10.3 | 26.5 | 21 | 38.6 | 91.4 |
TU-CF-240/12 | 12 | 12.7 | 38.6 | 91.4 | |||
TU-CF-240/14 | 14 | 14.8 | 38.6 | 91.4 | |||
TU-CF-240/16 | 16 | 16.5 | 38.6 | 91.4 | |||
TU-CF-240/20 | 20 | 20.9 | 38.6 | 91.4 | |||
TU-CF-300/12 | 300 | 12 | 12.7 | 30 | 24.5 | 43.8 | 98.0 |
TU-CF-300/14 | 14 | 14.8 | 43.8 | 98.0 | |||
TU-CF-300/16 | 16 | 16.5 | 43.8 | 98.0 | |||
TU-CF-300/20 | 20 | 20.9 | 43.8 | 98.0 | |||
TU-CF-400/12 | 400 | 12 | 12.7 | 35 | 27 | 49.0 | 104.0 |
TU-CF-400/14 | 14 | 14.8 | 49.0 | 104.0 | |||
TU-CF-400/16 | 16 | 16.5 | 49.0 | 104.0 | |||
TU-CF-400/20 | 20 | 20.9 | 49.0 | 104.0 |
