Cable Ties and Edge Clips
当前所在位置: 首页 » 产品中心 » HellermannTyton-电缆配件 » 线缆扎带 » Cable Ties and Edge Clips

进口产品分类

分享到:

Cable Ties and Edge Clips

APPLICATION:

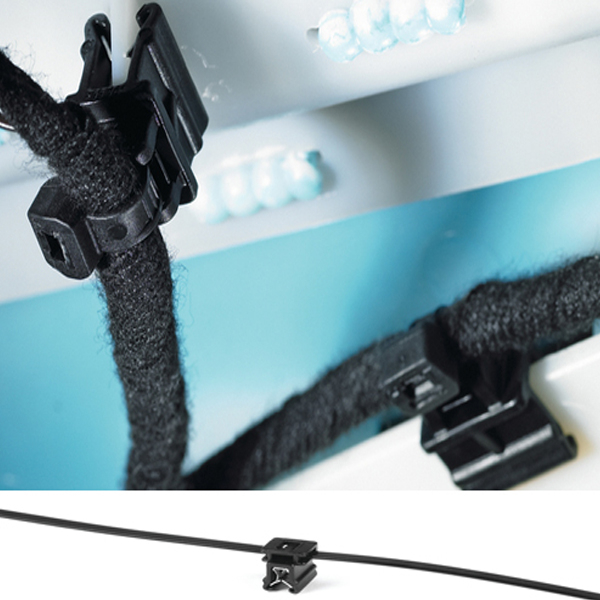

These cable ties and Edge Clip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.

  • T50
  • HELLERMANNTYTON
  • 39269090
数量:

CABLE TIES AND EDGE CLIPS

SPECIFICATIONS

MATERIAL HEAD:

POLYAMIDE 6.6 HEAT STABILISED (PA66HS)

OPERATING TEMP.:

-40℃ TO +105℃ CONTINUOUS (+145℃ FOR 500 H)

FLAMMABILITY:

UL94 V2

EASE CODE

TYPE

LENGTH  (L)

WIDTH   (W)

BUNDLE ΦMAX.

MIN. TENSILE STRENGTH (N)

MATERIAL

CABLE TIE

FOOT PART

TWO PIECE, PANEL THICKNESS 1.0 - 3.0MM




T30REC4A-150-76090

T30REC4A

150

3.5

33

135

PA66HS

PA66HIRHS

T50ROSEC4A-150-76099

T50ROSEC4A

200

4.6

45

225

PA66HS

PA66HIRHS

T30REC4B-150-76080

T30REC4B

150

3.5

33

135

PA66HS

PA66HIRHS

T50ROSEC4B-150-76079

T50ROSEC4B

200

4.6

45

225

PA66HS

PA66HIRHS

T50ROSEC5A-150-40591

T50ROSEC5A

200

4.6

45

225

PA66HS

PA66HIRHS

T50ROSEC5B-150-40581

T50ROSEC5B

200

4.6

45

225

PA66HS

PA66HIRHS

T50ROSEC9-156-05903

T50ROSEC9

200

4.6

45

225

PA66HS

PA66HIRHS

T50ROSEC10-156-05904

T50ROSEC10

200

4.6

45

225

PA66HS

PA66HIRHS

T50ROSEC21-156-00010

T50ROSEC21

200

4.6

45

225

PA66HS

PA66HIRHS

T50ROSEC22-156-00011

T50ROSEC22

200

4.6

45

225

PA66HS

PA66HIRHS

ONE PIECE, PANEL THICKNESS 1.0 - 3.0MM




T50SOSEC12E-148-00200

T50SOSEC12E

160

4.6

35

180

PA66HS

PA66HS

T50SOSEC13E-126-00000

T50SOSEC13E

160

4.6

35

180

PA66HS

PA66HS

REMARKS:

ALL DIMENSIONS IN MM. SUBJECT TO TECHNICAL CHANGES
